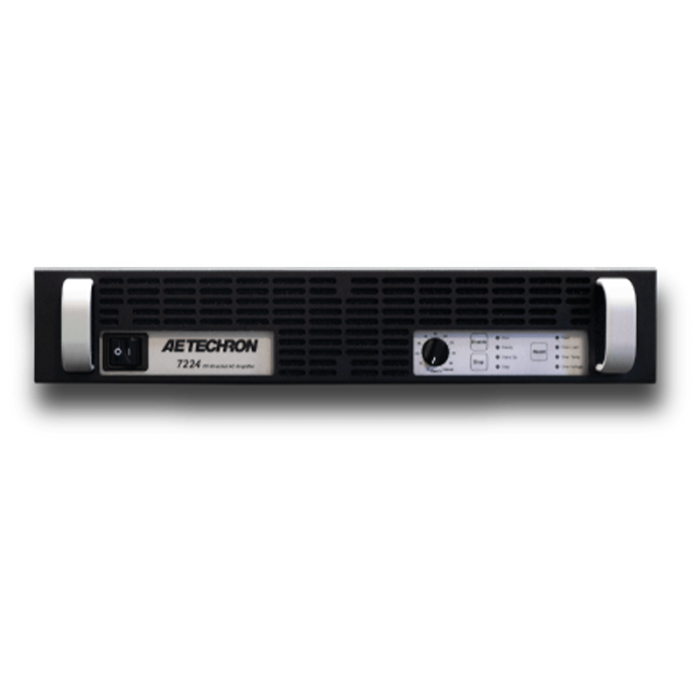

AE Techron
900VA, Single-phase, 2U, Industrial Amplifier/ Battery Simulator
Up to 50 Ap/158 Vp, DC to 1 MHz, Single-Phase
- Field-selectable controlled-voltage or controlled-current operation
- Can be switched between rail supply modes and voltages to optimise for various load impedances
- Protection circuits guard against over/under voltage, over current, over temperature, and circulating ground currents
The 7224 is a 4-quadrant power amplifier that offers the features of larger industrial amplifiers in a smaller 2U size that runs from single phase 120/230VAC. It features DC – 400 kHz bandwidth, controlled-current or controlled-voltage modes of operation and has a wide range of field-configurable options.
The 7224’s configurability and flexibility have made it the choice of many research and university labs. It can be field-configured to run well into loads from 100 ohms to as low as 0.5 ohms. Even with its small bench top size, the 7224 is able to produce as much as 50 amps of current and as much as 158 volts, providing serious power for a wide range of applications and experiments.
With its 90V/µS slew rate, it is able to accurately reproduce wave forms from DC to above 400 kHz, making it a great choice for high-speed control applications. With its ability to operate in either Controlled-Voltage or Controlled-Current modes, it has been used in Small Bore MRI and NMR systems, testing of switch-mode power supply components, and driving Helmholtz coils.
Key Performance Capabilities:
- Up to 900 watts RMS power output
- Provides rated long-term power at frequencies up to 40 kHz
- Small signal response up to 1 MHz
- Up to 16A at 13.5 VDC
- Can be used to create series or parallel systems for up to 3 times the voltage or 4 times the current output
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Protection |
Over/Under Voltage: ±10% from specified supply voltage forces amplifier to Standby Over Current: Breaker protection on main power and low voltage supplies Over Temperature: Separate monitoring and protection for output transistor, heat sink, and transformer |
| Physical Characteristics |
Chassis:
Weight:
AC Power:
Operating Temperature:
Humidity: 70% or less, non-condensing Cooling: Forced air cooling with removable filters, airflow 180CFM Dimensions: Height x Width x Depth: 3.5” x 19” x 22.75” (8.9 cm x 48.3 cm x 57.8 cm) |
| Status Display, Control, I/O |
LED Displays: Ready, Standby, Fault, Over Temp, Over Voltage, Overload Switches: Soft Touch for Run, Stop, Reset Gain Control: Adjustable from 20 to 0 when enabled On/Off Breaker Power Connection: 25 Amp IEC with retention latch Signal Output: Three-position terminal strip (OUTPUT/COM/CHASSIS GROUND) Signal Input: User selectable BNC or Barrier Strip, Balanced or Unbalanced |
| Communication Capabilities |
Current Monitor: 5A/V ± 1%; 2.5A/V ± 1% (differential configuration) Reporting: System Fault, Over Temp, Over Voltage, Over Load Remote Control: Interlock Connector for Blanking control, Force to Standby, Reset after a fault |
| Frequency Response | +1.0 to -1.5 dB |
| 8-Ohm Power Response |
|
| Residual Noise |
|
| Signal-to-Noise Ratio |
|
| Unit to Unit Phase Error | ±0.1 degrees at 60 Hz |
| DC Drift | < ±1.5mV |
| Output Impedance | 5.3 mOhm in series with 0.95 µH |
| Phase Response | ±5 degrees + 600 nsec propagation delay |
| Total Harmonic Distortion (THD) | Less than 0.1% |
| DC Offset | < ±5 mV |
| Slew Rate | 75 V/µSec |
| Input Characteristics |
Balanced Input with Ground:
Unbalanced Input:
Gain:
Gain Linearity: 0.15% over input signal (0.2V to 5V) Max Input Voltage: ±10V, balanced or unbalanced |
