7234
7234
AE Techron

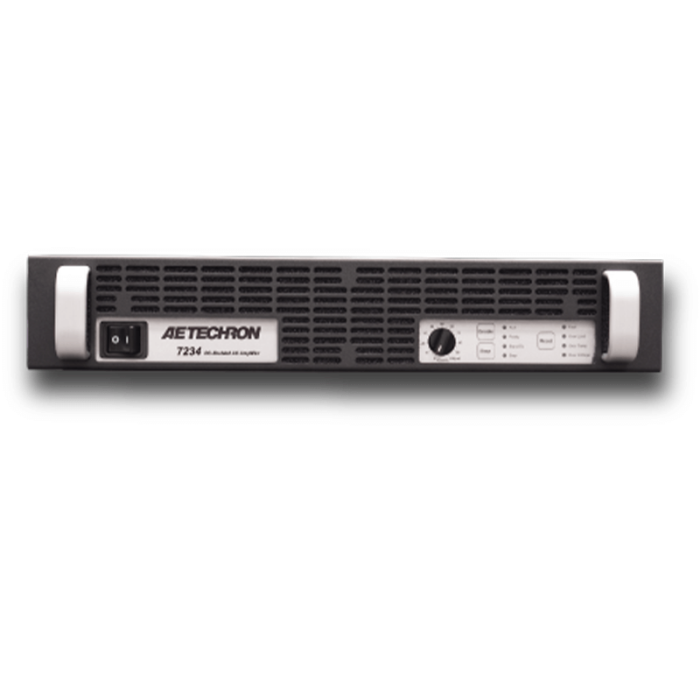

Single-phase, 2U, Industrial Amplifier/Battery Simulator
Up to 50 Ap/158 Vp, DC to 1 MHz, Single-Phase
- Bench-sized
- Powered from 120V/230VAC
- Source and Sink (4 quadrant)
- Rugged Design
- 3-Year, No-Fault Warranty
The 7234 is a capable, versatile, and reliable EMC lab partner. This powerful amplifier/battery simulator provides up to 30A of long-term DC current with surges of up to 50A and can slew voltages at rates of up to 100V/µs.
It is load-tolerant, able to drive most inductive, capacitive, and resistive loads easily. The feature set of the 7234 allows it to meet or exceed the requirements of 1000+ Automotive and Aviation DC Conducted Susceptibility Standards Tests.
The 7234 is light enough to be hand-carried from one test location to another, rugged enough to tolerate being bounced around on a cart, and able to be powered from standard 120V/230V AC wall power. These features, along with the 7234s powerful performance, make it possible to turn virtually any bench or desk into a competent test location.
Key Performance Capabilities:
- Up to 50 Ap/158 Vp, DC to 1 MHz, Single-Phase
- Drop outs and surges as fast as 2µs
- Small signal response up to 1 MHz
- 5 VDC at up to 30A
- Field-selectable ±40V, 75V or 150V potential
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Protection |
Over/Under Voltage: ± 10% from specified supply voltage amplifier is forced to Standby Over Current: Breaker protection on both main power and low voltage supplies Over Temperature: Separate output transistor, heat sink, and transformer temperature monitoring and protection |
| Physical Characteristics |
Chassis: The Amplifier is designed for stand- alone or rack-mounted operation. The Chassis is steel with a black powder coat finish. The unit occupies two EIA 19-inch-wide units. Weight: 47.5 lbs (21.5 kg), Shipping: 58 lbs (26 kg) AC Power: Single phase, 120 VAC, 60 Hz, 20 Amp service; (220-240 VAC, 50-60 Hz, 10 Amp service model available) Operating Temperature: 10°C to 50°C (50°F to 122°F), maximum output power de-rated above 30°C (86°F). Humidity: 70% or less, non-condensing Cooling: Forced air cooling from front to back through removable filters. Airflow: 180CFM Dimensions (HxWxD): 3.5 x 19” x 22.75”” (8.9 cm x 48.3 cm x 57.8 cm) |
| Status Display, Control, I/O |
Front Panel LED Displays indicate: Ready, Standby, Fault, Over Temp, Over Voltage, Overload Soft Touch Switches for: Run, Stop, Reset Gain Control, when enabled: Voltage gain adjustable from 20 to 0 On/Off Breaker Back Panel Power Connection: 25 Amp IEC (with retention latch) Signal Output: Four-position terminal strip (OUTPUT/COMMON/SAMPLED COMMON /CHASSIS GROUND) Signal Input: User Selectable BNC or Barrier Strip, Balanced or Unbalanced Remote Sense Port: Correction up to 10V drop, DC-1kHz, 0.1% accuracy; Up to 10V drop, DC-10kHz, 1% accuracy Dip Switches: Refer to Configuration Settings section Interconnect Connectors: Two back-panel DB9 connectors. Refer to the Configurations Settings section for more information. |
| Communication Capabilities |
Operation Monitor: Run/Standby Voltage Monitor: 10V/V ± 1% Current Monitor: 5A/V ± 1% Temperature Monitor: 1V/100 Kelvin Reporting: System Fault, Over Temp, Over Voltage, Over Load Remote Control via Interconnect Connectors: Force to Standby Remote Control via Interlock Connector: Blanking Control, Force to Standby, Reset after a fault |
| Frequency Response | +1.0 to -1.5 dB |
| Residual Noise |
|
| Signal-to-Noise Ratio |
|
| Unit to Unit Phase Error | ±0.1 degrees at 60 Hz |
| Output Impedance | 4.4 mOhm in series with 0.43 µH |
| Phase Response | ±5 degrees plus 600 nsec propagation delay |
| Slew Rate | 100+ V/µSec |
| Input Characteristics |
Balanced with ground: Three terminal barrier block connector, 20k ohm differential Unbalanced: BNC connector, 10k ohm single ended Max Input Voltage: ±10V, balanced or unbalanced Common Mode Rejection: -58 dB with 5V input |
