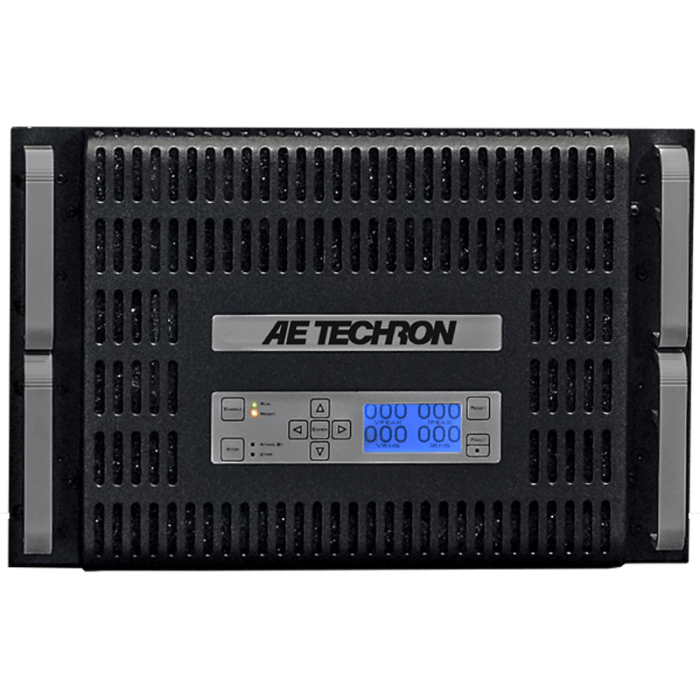

7796HC
7796HC
AE Techron
Precision, DC-enabled Linear Power Amplifier
Up to 200 Ap Inrush Current, DC to 100+ kHz, Three-Phase
- Stable when driving a wide range of resistive, inductive or capacitive loads
- Field-selectable controlled-voltage or controlled-current operation
- Can be switched between rail supply modes to optimize for various load impedances
- Protection circuits guard against over/under voltage, over current, over temperature, and circulating ground currents
The 7796HC power amplifier offers up to 85 Ap continuous at 13.5 VDC, DC – 250 kHz small-signal bandwidth, and controlled-current or controlled-voltage modes of operation. The 7796HC can be used to simulate ripple noise, drop outs, surges and ground shift noise as required by a variety of standards for DC-powered electronics in the aviation and automotive industries.
A single 7796HC makes a very good choice for 13.5V DC-based power susceptibility test standards for high-current-draw EUTs (up to 85A).With configurations capable of up to 600Ap and the ability to both source and sink, the 7796HC is your best solution for high-current DC Conducted Immunity testing.
Key Performance Capabilities:
- Up to 85A continuous at 13.5V DC; 70A at 28V DC
- Up to 200A in-rush current capability
- Stable when driving highly capacitive loads
- ±80V DC capable
- >35 V/µs slew rate
- Four-quadrant operation (source and sink)
- 208 VAC version ONLY; 400 VAC version not available
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Protection |
Over/Under Voltage: ± 10% from specified supply voltage amplifier is forced to Standby Over Current: Breaker protection on both main power and low-voltage supplies Over Temperature: Separate output transistor, heat sink, and transformer temperature monitoring and protection |
| Physical Characteristics |
Chassis: The amplifier is designed for stand-alone or rack-mounted operation. The chassis is aluminum with a black powder-coat finish. The unit occupies seven EIA 19-inch-wide units. Weight: 153 lbs (69 kg); Shipping: 168 lbs (76.2 kg) AC Power: Three-phase, 208 VAC (±10%), 47-60 Hz, 30A AC service Operating Temperature: 10°C to 50°C (50°F to 122°F), maximum output Power de-rated above 30°C (86°F). Humidity: 70% or less, non-condensing Cooling: Forced air cooling from front to back through removable filters via six 100ft3/min. fans. No space is required between rack-mounted amplifiers. Air filters are removeable from the rear via one fastener per side and may be eliminated if cabinet filtration is provided. Dimensions (HxWxD): 12.25” x 19” x 22.8” (31.3 cm x 48.3 cm x 57.9 cm) |
| Status Display, Control, I/O |
Front Panel LED Displays indicate: Ready, Standby, Fault Soft Touch Switches for: Run, Stop, Reset LCD Display: Can be configured for up to four simultanteous displays reporting one, two, or all four of the following: Vp, VRMS, Ap, ARMS Back Panel Power Connection: NEMA-style locking receptacle; matching AC connector also included Signal Output:4-position terminal barrier block (OUTPUT / COMMON / SAMPLED COMMON / CHASSIS GROUND); resistor installed between SAMPLED COMMON AND CHASSIS GROUND is a 2.7-ohm, 2W, 5%, metal-oxide resistor Signal Input: User Selectable BNC or Barrier Strip, Balanced or Unbalanced Interlock Connector: 25-pin D-sub connector used for amplifier control and status applications; also used in multi-amplifier applications |
| Communication Capabilities |
Current Monitor: 20A/V ± 1%; 10A/V ± 1% (differential configuration) Reporting: System Fault, Over Temp, Over Voltage, Over Load Remote Control via Interlock Connector: Blanking control, Force to Standby, Reset after a fault |
| Frequency Response | +0.1 to -0.5 dB |
| Residual Noise | Less than 250 µV (<0.25 mV) |
| Unit to Unit Phase Error | ±0.1 degrees at 60 Hz |
| DC Drift |
|
| Output Impedance | 3.2 mΩ in series with 2.2 µH |
| Phase Response | ±8.3 degrees |
| Output Offset Current | Less than 10 mA DC |
| Maximum Continuous Output Power | 2550 watts RMS |
| Total Harmonic Distortion (THD) | Less than 0.25% |
| DC Offset | Less than ±200 µV |
| Slew Rate | >35 V/µs |
| Input Characteristics |
Balanced with ground: Three-terminal barrier block connector, 20 kΩ differential Unbalanced: BNC connector, 10 kΩ single-ended Gain, Voltage Mode: 20 volts/volt; Current Mode: 20 amperes/volt Gain Linearity (over input signal, from 0.2V to 5V),
Max Input Voltage: ±10V, balanced or unbalanced Input Impedance: 20 kΩ differential Input Sensitivity: 3.0V input for 3800W output into 1 ohm (adjustable) Common Mode Rejection Range: -±11 VDC maximum Common Mode Rejection Ratio: Better than 70 dB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
