7R45082000
7R45082000
Hummel

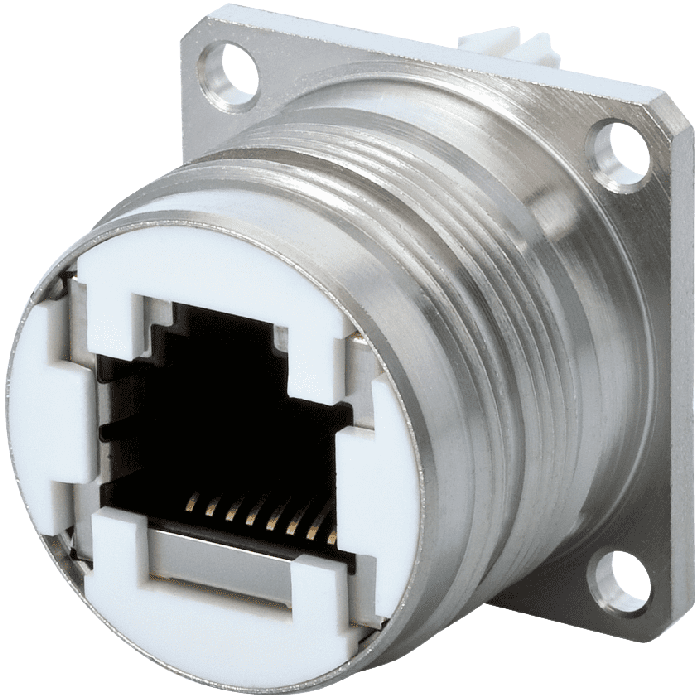

M23 RJ45 panel connector housing
M23 RJ45 panel connector housing from Hummel. Also known as 7R45082000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7R45082000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | white |
| Length (mm) | 21.0000 |
| Weight (kg) | 0.02018 |
| Further information | Housing without contact inserts. Electrical data depend on the RJ45 version used. Incl. soldering insert 8+2-pole |
| Customs tariff number | 85366990 |
| EAN code | 4033878505137 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Characteristic of connection | RJ45 |
| Housing type | Panel |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | - |
| Insert | RJ45 |
| Installation type | Flange. Rear wall |
| Version | with vibration protection |
| External thread (AG) | - |
| External thread - plug in side | M23 x 1 |
| Insulating body material | PBT |
| Internal thread - plug in side | - |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | FKM (FPM);NBR |
| Panel hole (mm) | Ø 23 + 0,1 |
| Drill form (mm) | - |
| Flange (mm) | 25 x 25 |
| Hole distance (mm) | 20.5 |
| Hole diameter (mm) | 4 x M3 |
| Suitable contact inserts | 7MRJ450007, A7RJ-081M41, A7RJ-081M6A, A7RJ-821M51 |
| Protection class | IP 67, IP 69 K |
| Usage | Data |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
