Bird

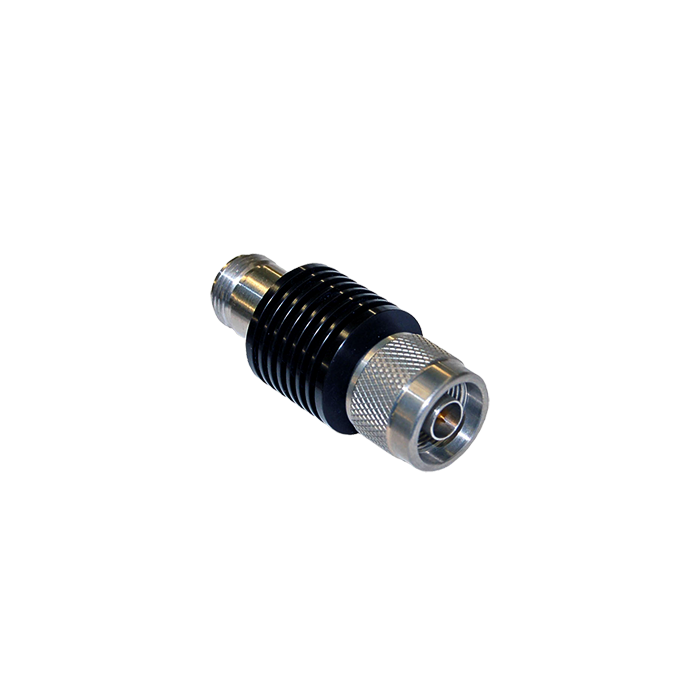

10W, DC-18 GHz, Bi-Directional RF Attenuator
8353A030-10-18, 10 Watt RF Power Attenuator is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide naturally lower inter-modulation performance and safety when used in high magnetic fields.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 10 Watt, Bi-Directional Attenuator |
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Attentuation Value | 30dB ± 1.25dB |
| Power Rating | 10 W at 25 °C- Derated Linearly to 1 W @ +125 °C |
| VSWR and Attenuation Accuracy | DC to 4 GHz: 1.20:1 max. 4 GHz to 12.4 GHz :1.30:1 max. 12.4 GHz to 18 GHz: 1.45:1 max. |
| VSWR and Frequency Range | DC to 18 GHz |
| Operating Position | Any |
| Operating Temperature | -65 to 125 °C (-85 to 257 °F) |
| Connectors | N (M/F) |
