8353A040-50-18
8353A040-50-18
Bird

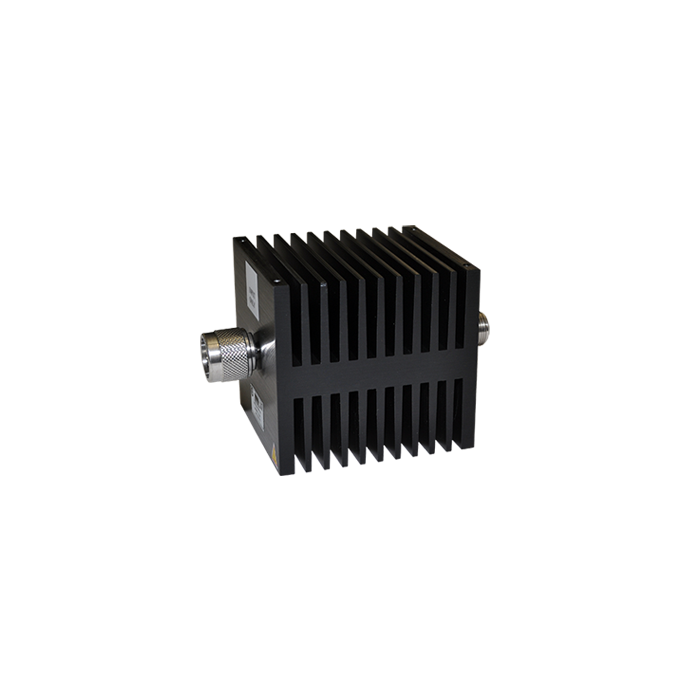

50W, DC to 18 GHz, Uni-Directional RF Attenuator
8353A040-50-18, 50 Watt RF Power Attenuator is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide naturally lower inter-modulation performance and safety when used in high magnetic fields.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 50 Watt, Uni-Directional Attenuator |
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized |
| Attentuation Value | 40 dB ± 1.50 dB |
| Power Rating | 50 W CW @ 25°C- Dearted Linearly to 10 W @ 125°C |
| VSWR and Attenuation Accuracy | DC to 6 GHz: 1.25:1 max. 6 GHz to 12.4 GHz :1.35:1 max. 12.4 GHz to 18 GHz: 1.45:1 max. |
| VSWR and Frequency Range | DC to 18 GHz |
| Operating Position | Any |
| Operating Temperature | -65 to 125 °C (-85 to 257 °F) |
| Connectors | N, (M/F) |
| Dimensions | 3.00" SQ x 4.75" Long |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
