600 Watt, Oil-Cooled RF Termination

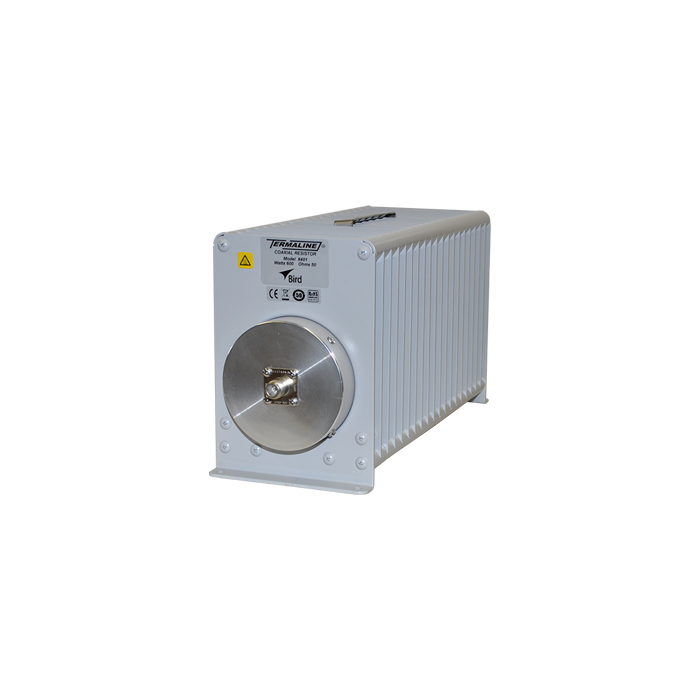

8401, RF Load is a portable, self-contained general purpose 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 3 GHz.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8401 Specifications
- Rugged portable Bench load for medium power base station RF testing up to 3 GHz
- Oil-assisted convection cooling for safe continuous operation up to 600W full rated power
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
- Low-profile housing with handle and rubber feet for trouble-free operation in the most demanding environments
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Gray Powder Coat |
| VSWR and Frequency Range | DC to 1 GHz @ 1.1 max., 1 Ghz to 2.8 GHz @ 1.2 max., 2.8 GHz to 3 @ 1.3 max. |
| Coolant | 0.7 gal (2.65 liters) Refined Mineral Oil |
| Operating Position | Horizontal Only |
| Cooling Type | Oil-Cooled |
| Connectors | N (F) |
| Temperature Range | -40 to +45 °C |
| Dimensions | 16-13/16" x 8 1/2" x 5 15/16" (H x W x D), 427 x 216 x 151 mm |
