9132-50

9132-50

Hioki

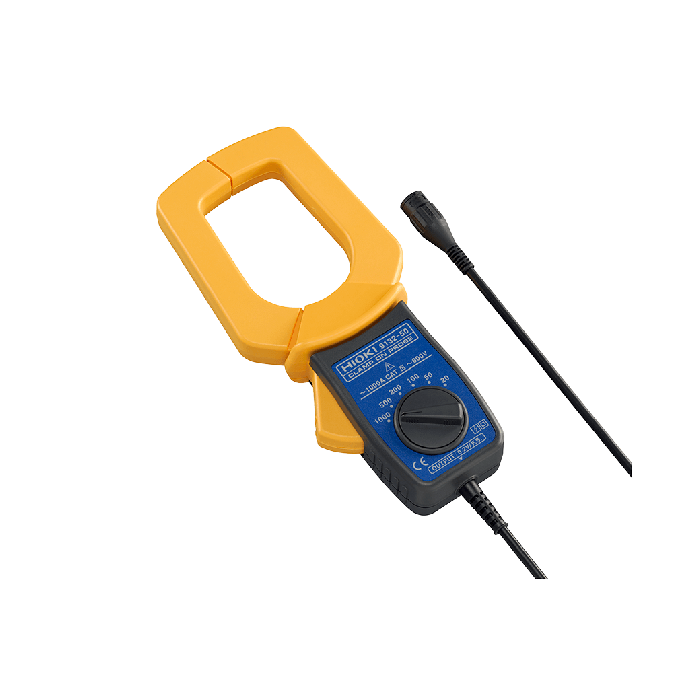

Clamp On Probe 9132-50 - Simply Connect to a Tester or Recorder to Easily Measure Large Currents

main product photo
Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9132-50 is a multi-range 1000 A AC voltage output clamp sensor for capturing waveforms with DMMs and Memory HiCorders. Measure AC current on live power lines without needing to cut the wire. CAT III 600 V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Economical clamp sensor for waveform recording with Memory HiCorders
  • Choose from up to six general-purpose ranges
Basic Specifications
Rated current 20 A to 1000 A AC, 6 ranges
Accuracy ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)
Frequency characteristics Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.
Output rate 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
Max. allowable input 1000 A rms continuous (all ranges)
(For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
Max. rated voltage to earth 600 Vrms (50/60 Hz, CAT III)
Core diameter φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar
Dimensions and mass 100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz), cord length: 3 m (9.84 ft)
Accessories Instruction manual ×1
Accessory Type Probe
Notes For commercial power lines, 50 Hz/60 Hz (separate power supply not required).
