9261-10

Hioki

Test Fixture, Cable 1M, DC To 8Mhz, 50Ω

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Test Fixture

Key Features

Compatible with: IM3590, IM3570, IM3533, IM3523, and similar products
Components: Test box, 1m 4-pole BNC cable
Impedance: 50 Ohms
Measurement range: DC to 8 MHz
Test object conductor diameter: 0.3 mm to 1.5 mm

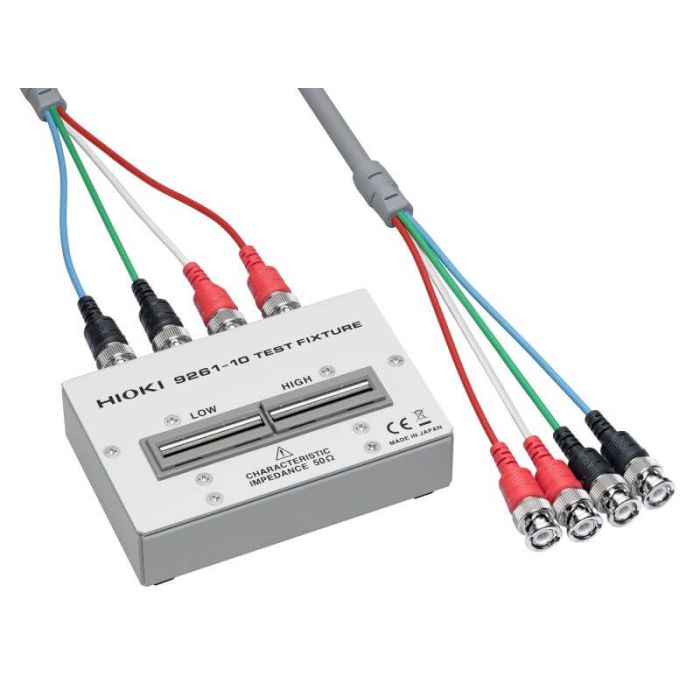

The test fixture 9261-10 is designed for use with IM3590, IM3570, IM3533, IM3523, and similar products. It consists of a test box and a 1-meter 4-pole BNC cable, offering an impedance characteristic of 50 Ohms. The fixture supports measurements within a range from DC to 8 MHz. It accommodates test objects with conductor diameters from 0.3 mm to 1.5 mm, making it suitable for various precision testing tasks.
