9263

Our Technologies

9263

Hioki

Test Fixture

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

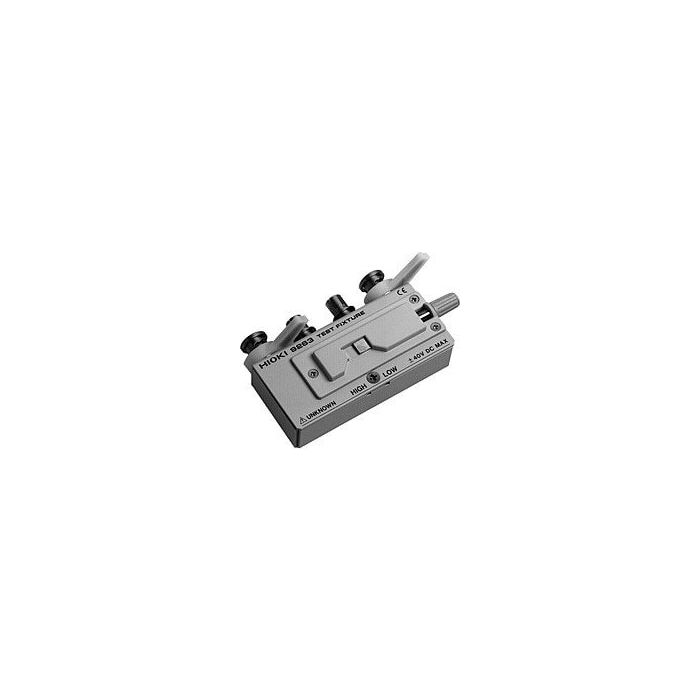

Test Fixture

Key Features

Fixture type: Direct connection
DUT size: 1 mm to 10 mm
Test frequency range: DC to 8 MHz
Compatible with: IM3590, IM3533, IM3523, and related Hioki instruments

The 9263 is a direct connection test fixture designed to measure SMD-type components with a Device Under Test (DUT) size ranging from 1 mm to 10 mm. It operates within a frequency range from DC to 8 MHz, allowing for precise testing of components. The 9263 is compatible with the IM3590, IM3533, IM3523, and related instruments, making it a versatile tool for SMD component measurements.
