Clamp On Sensor 9272-05 - Ideal for Measuring AC Current with Low Frequencies such as Inverter Control Devices

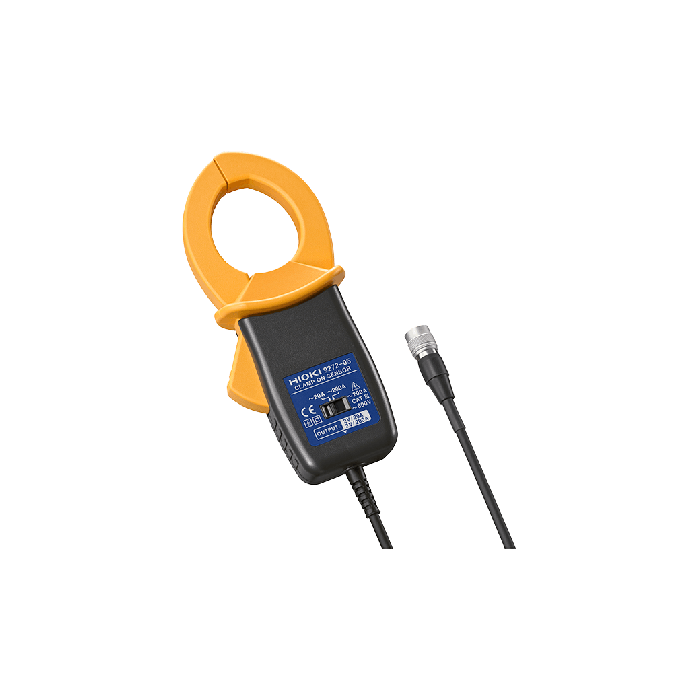

main product photo
Hioki current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The 9272-10/9272-05 are a 1 Hz to 100 kHz AC current sensor ideal for measuring low frequency equipment such as inverters. CAT III 600 V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Superior low frequency and phase characteristics suitable for testing the current and power of inverter control devices
  • Wide 1 Hz to 100 kHz frequency bandwidth perfect for harmonic analysis, FFT analysis and waveform monitoring (AC only)
Basic Specifications
Rated current 20 A AC, or 200 A AC (selectable)
Max. allowable input 50 A rms (at 20 A range), 300 A rms (at 200 A range)
Frequency characteristics 1 Hz (±2 % rdg. ±0.1 % f.s.) to 100 kHz (±30 % rdg. ±0.1 % f.s.)
Amplitude and Phase accuracy Amplitude: ±0.3 % rdg. ±0.01 % f.s. Phase: ±0.2 ° (45 to 66 Hz)
Output voltage 2 V/20 A or 2 V/200 A
(This device outputs AC voltage via the Sensor Unit)
Max. rated voltage to earth 600 V rms (CAT III)
Core diameter φ 46 mm (1.81 in)
Power supply ±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)
Power consumption 5 VA Max. (when measuring 200 A)
Dimensions and mass 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 430 g (15.2 oz), cord length: 3 m (9.84 ft)
Accessories Carrying case 9355 ×1, Instruction manual ×1, Mark bands ×6
Instrument Type Clamp Meter
Notes This product cannot be used alone. The optional Sensor Unit is required in order to supply power and connect the clamp to a Memory HiCorder or other instrument. The clamp can be directly connected to a compatible Power Meter, or Power Analyzers.
