9641
9641
Hioki

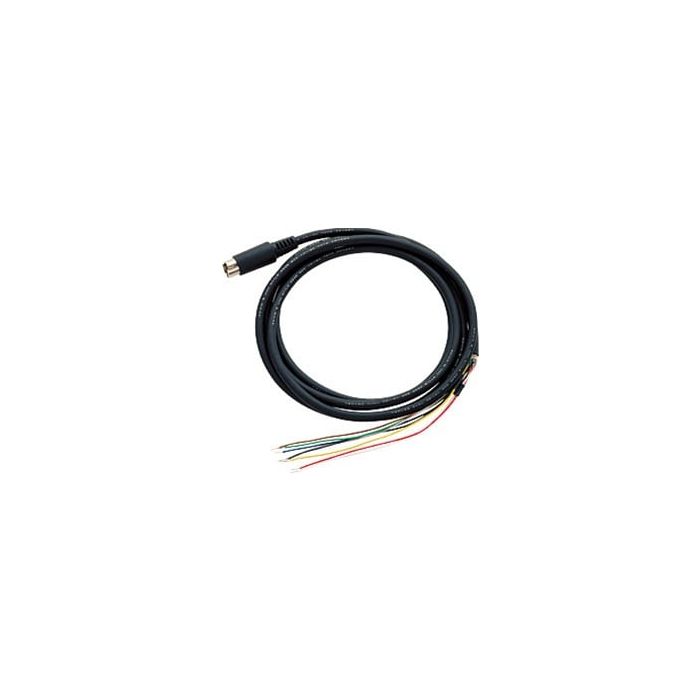

Connection Cable
Connection Cable
Key Features
- Pin Number and Wire Color: 1= Red, 2= White, 3= Black, 4= Yellow, 5= Blue, 6= Green, 7= Brown, 8= Gray
- Cable Type: PVC, AWG #28 × 8 (UL2835)
- Connector: Mini-DIN 8P connector
- Cable Diameter: 4.8 mm PVC-jacketed cable
- Heat Shrink Tubing: Red, White, Black, Yellow, Blue (colour-coded for pins)
- Insulation Resistance: DC 250V ≥ 500 MΩ
- Dielectric Strength: AC 250V for 1 minute Overall Length: 1000 mm
Open end cable for 8420 series, 8430, LR8431, LR8432
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
