Hioki

100:1Probe 9666 - Measures high voltages by attenuating the voltage to a lower level

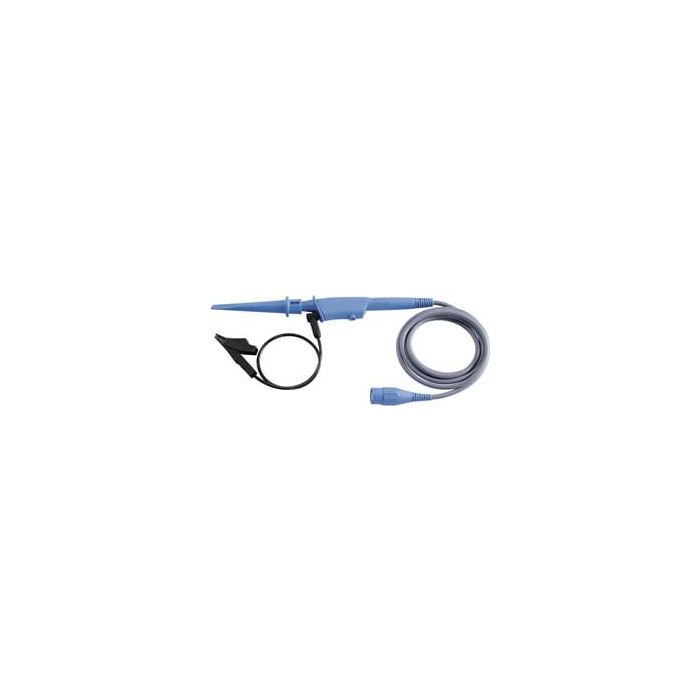

main product photo
The 9666 is 100:1 attenuation probes used to measure high voltage with Hioki Memory HiCorders.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Attenuates the input voltage to 1/100
  • Input capacitance to the probe can be lowered to reduce the load effect
Basic Specifications
Division ratio 100 : 1 ±3% (at 100 VDC)
(use with a device having a 1 MΩ input resistance)
100 : 1 +3%, -7% (at 1000 VDC)
(use with a device having a 1 MΩ input resistance)
Maximum input voltage 5 kV peak (1 MHz or less)
Max. rated voltage to earth 1000 V CAT II *
* Maximum rated voltage above ground depends on input unit. This probe does not expand the maximum rated voltage above ground of an isolated input.
Input Impedance 100 MΩ
Frequency characteristics DC to 200 MHz
Input capacitance 7 pF or less
Compensation capacitance range
(Equipment side)		 15 to 45 pF
Cable length 1.5 m (4.92 ft)
Accessories Vinyl case ×1
Accessory Type Probe
Notes This probe does not expand the maximum rated voltage above ground of an isolated input.*Please check for Memory HiCorder compatibility by referring to the recorder's product catalog.
More Information
Attribute Value
Data Sheet Click here to view
