Hioki

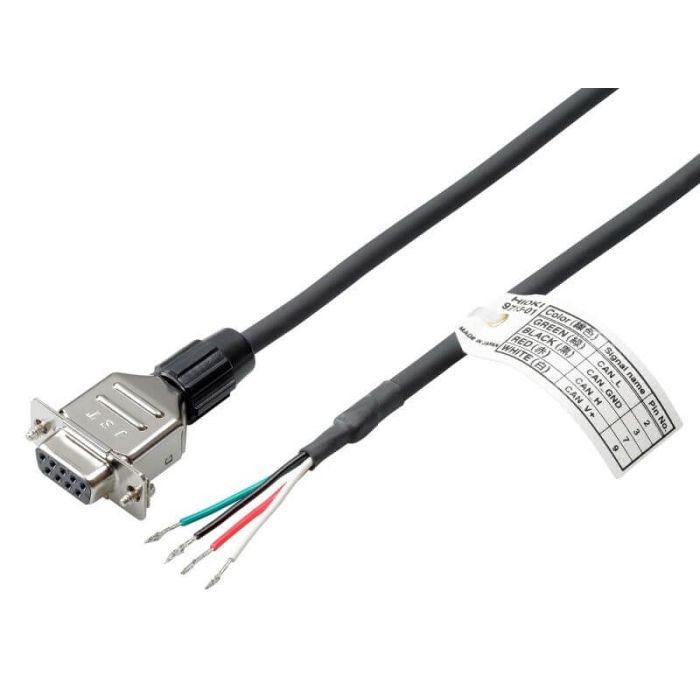

Can Cable, Unprocessed On One End, 1.8M Length
This product is available in 5-7 weeks
CAN Cable for MR8904 and LR8102Key Features
- Connector: Sub-D9 female
- Length: 1.8m
- Pin assignment: No. 2 > green (CAN_L) No. 3 > black (CAN_GND) No. 7 > red (CAN_H) No. 9 > white (CAN_V+)
- Cable diameter: Φ 5 mm
- Single wire diameter: Φ 1 mm
- Core wire diameter: AWG22 (0.34mm²)
The 9713-01 is a CAN -bus adaptor cable from Sub-D9 female to 4-pole unprocessed (open end) wires suitable for MR8904 or LR8102.
