9770

Hioki

Pin Type Lead

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

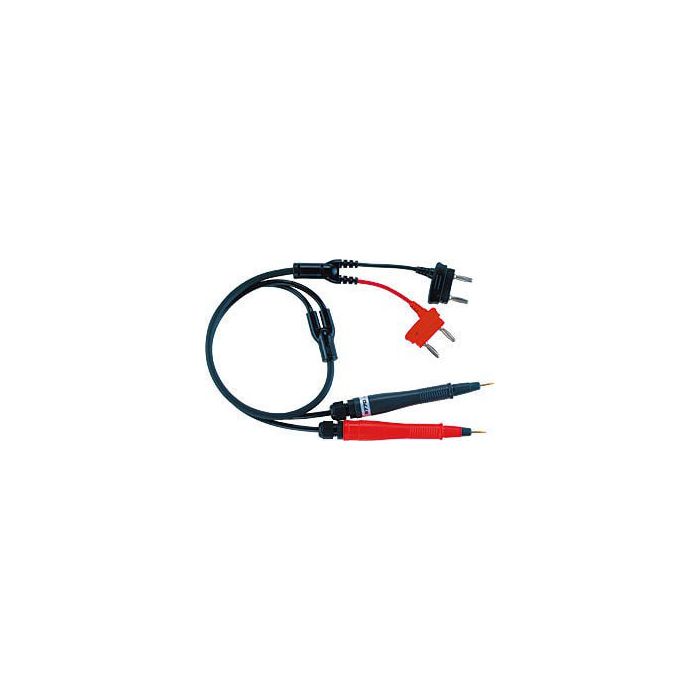

Pin Type Lead

Key Features

Coaxial pin, diameter: 1.8 mm
Continuous current: AC/DC 3 A
Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak
Operating temperature range: 0°C to 40°C
Storage temperature range: -10°C to 50°C
Length: approx. 860 mm
Weight: approx. 110 g
Spare parts: 9770-90 tip pin

The Hioki 9770 Pin-Type Lead is designed for precise resistance measurements on small objects, such as battery terminals. Its coaxial pin with a diameter of 1.8 mm ensures easy and accurate contact during measurements. The 9770 model utilises a 4-terminal structure to deliver precise and reliable results in industrial applications.
