9771

This product is available in 5-7 weeks

Key Features

• Parallel pin, spacing: 0.2 mm
• Continuous current: AC/DC 2 A
• Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak
• Operating temperature range: 0°C to 40°C
• Storage temperature range: -10°C to 50°C
• Length: approx. 860 mm
• Weight: approx. 110 g
• Spare parts: 9771-90 tip pin
• Surface of contacts: gilded

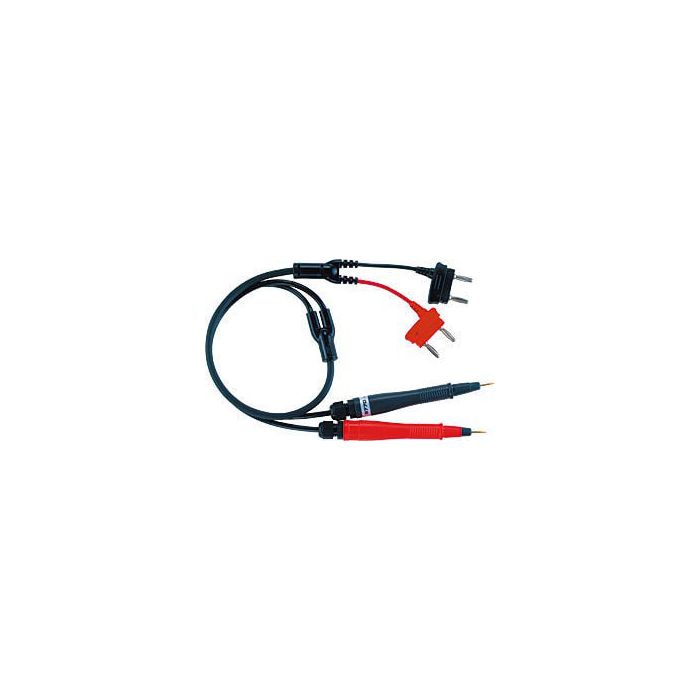

The Hioki 9771 Pin-Type Lead is developed for precise inspection of PCBs, through holes, and SMD components. It features parallel pins spaced 0.2 mm apart with a four-sided pyramid tip, making it ideal for measuring small objects on PCBs. This model also uses a 4-terminal structure to provide accurate and efficient measurements.
