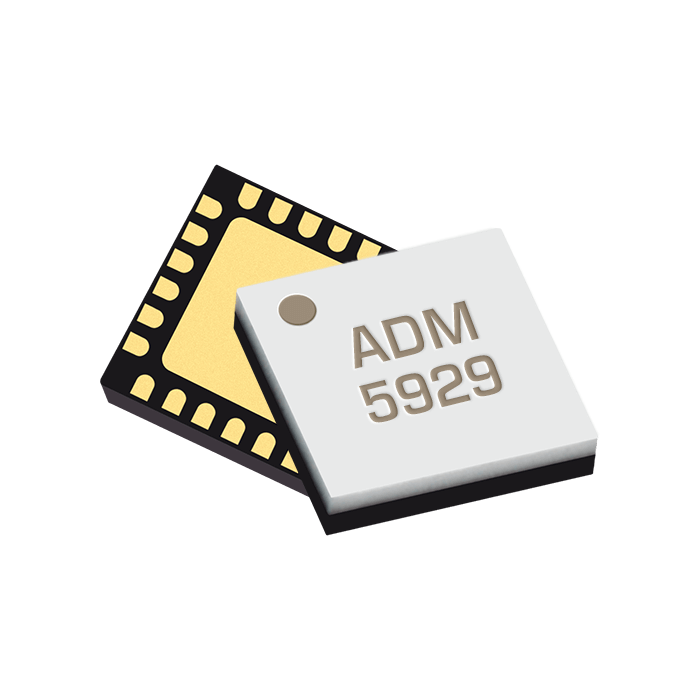

ADM-0026-5929SM
ADM-0026-5929SM
Marki Microwave
Broadband Distributed Amplifier
The ADM-0026-5929SM is a broadband, efficient GaAs PHEMT distributed amplifier in a 4mm QFN surface mount package. It is designed to provide optimal LO drive for T3 mixers and offers 13 dB typical gain and 20 dBm typical saturated output power for 165 mA of current. Extended high frequency gain offers improved harmonic generation and rise times improving T3 linearity. The ADM-0026-5929SM is biased with a 5-7 volt positive bias and an optional current reducing negative voltage with external bias tee. Additional applications include clock signals and other general purpose driver applications in electronic warfare and test and measurement. The ADM-0026-5929SM is an excellent alternative to competing GaAs PHEMT distributed amplifiers.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | DC |
Minimum Input Power for Saturation [dBm] | +6 |
Maximum Input Power for Saturation [dBm] | +16 |
Saturated Output Power [dBm] | +20 |
Small Signal Gain [dB] | 13.5 |
OIP3 [dBm] | +26 |
Amplifier Type | LO Driver Surface Mounts |
Package | Surface Mount |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
