ADM-8536PSM
ADM-8536PSM
Marki Microwave
2 - 20 GHz High Dynamic Range Gain Block

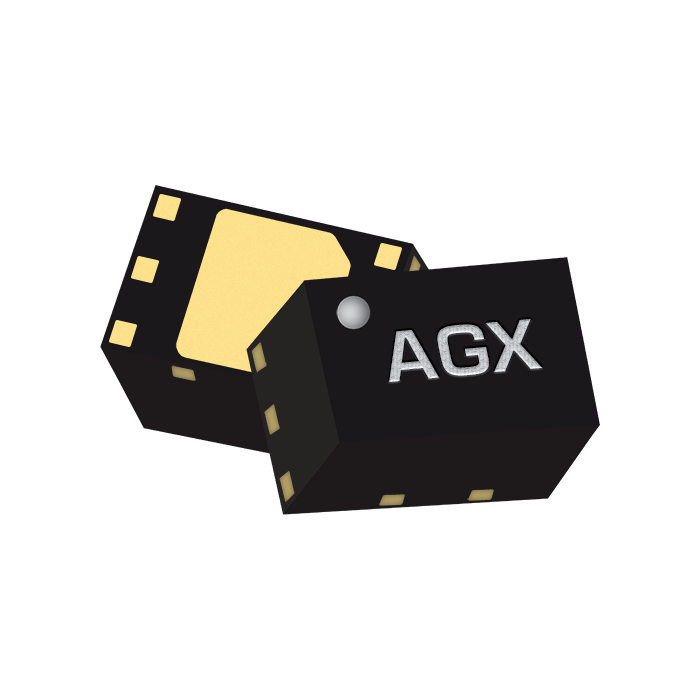

The ADM-8536PSM is the world's smallest 2-20 GHz high linearity, low noise amplifier solution, featuring 10.5 dB gain, +25 dBm OIP3 and 2.5 dB noise figure, making it suitable for use in RF front-ends. The amplifier is designed for ease of use due to its internal bias network, DC blocking and RF matching. The ADM-8536PSM's compact 1.3 x 2 mm DFN package and low power consumption make it an ideal choice for low SWaP applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 2 |
Noise Figure [dBm] | 2.5 |
Small Signal Gain [dB] | 10 |
P1dB [dBm] | +13 |
Output IP3 [dBm] | 25 |
Voltage [V/V] | +5 |
Current [mA] | 41 |
Amplifier Type | Gain Block |
Package | Surface Mount |
