ADM-8556
ADM-8556
Marki Microwave

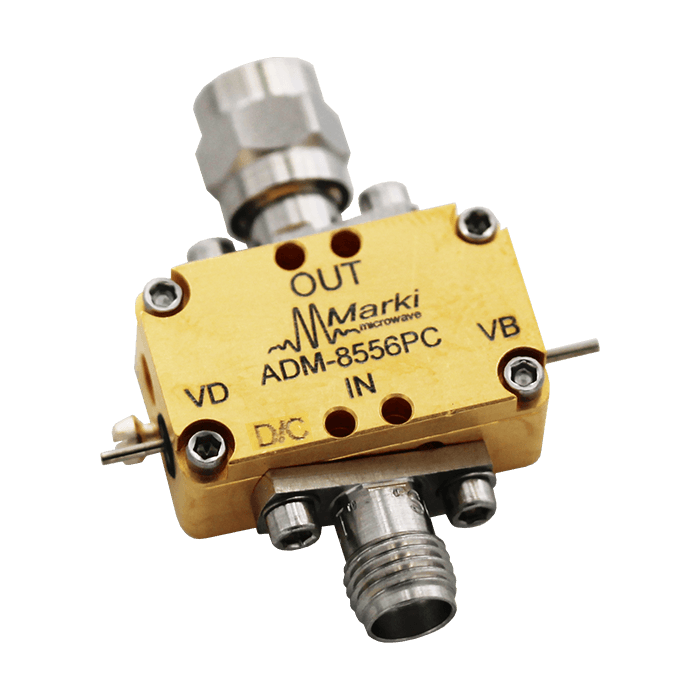

6 - 20 GHz Low Noise Amplifier
The ADM-8556 is a wideband low noise amplifier capable of providing 24 dB gain and a low 1.3 dB typical noise figure from 6 to 20 GHz. The ADM-8556 is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-8556 is available in bare die and connectorized module forms. The amplifier has excellent return losses and gain flatness.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 6 |
Noise Figure [dBm] | 1.3 |
Small Signal Gain [dB] | 24 |
P1dB [dBm] | +16 |
Output IP3 [dBm] | 27 |
Voltage [V/V] | +3 |
Current [mA] | 67 |
Amplifier Type | Low Noise |
Package | Bare Die and Module |
