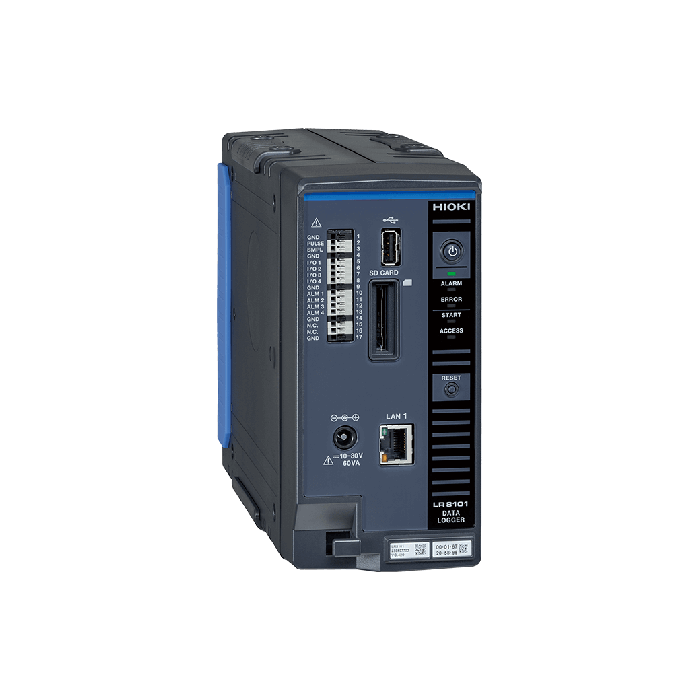

LR8102
LR8102
Hioki
Modular Data Logger Engineered for Use in Embedded Applications
Ideal Data Loggers for Battery Charge/Discharge Testing
Batteries used in electric vehicles are becoming increasingly high-voltage. To safely measure battery cell voltages and temperatures during charge/discharge testing of high-voltage battery packs, the terminal-to-ground voltage and module-to-module voltage of the instrument are critical.
Hioki's data loggers, LR8101 and LR8102, provide solutions that turn measurement system challenges into advantages. These solutions ensure safety in high-voltage systems, support a large number of measurement channels, and link data with host systems.
Key Performance Features:
- High Precision: Power analyser class accuracy for high voltage, high current, and high-power measurements
- Scalability and Versatility: Supports up to 3000 channels for voltage and temperature, and 120 channels for power measurement
- High Speed: Data refresh interval 5 ms
- High-Precision Current Sensors: Measures up to 2000 A
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Compatible Instruments | M7103 |
| Key Features |
|
| Operating Temperature | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) |
| Dimensions | Approx. 80W × 166H × 238D mm , Approx. 1.5 kg (3.3 lbs) |
| Power Supply |
|
| Included Accessories |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
