A712-7K10500000
A712-7K10500000
Hummel

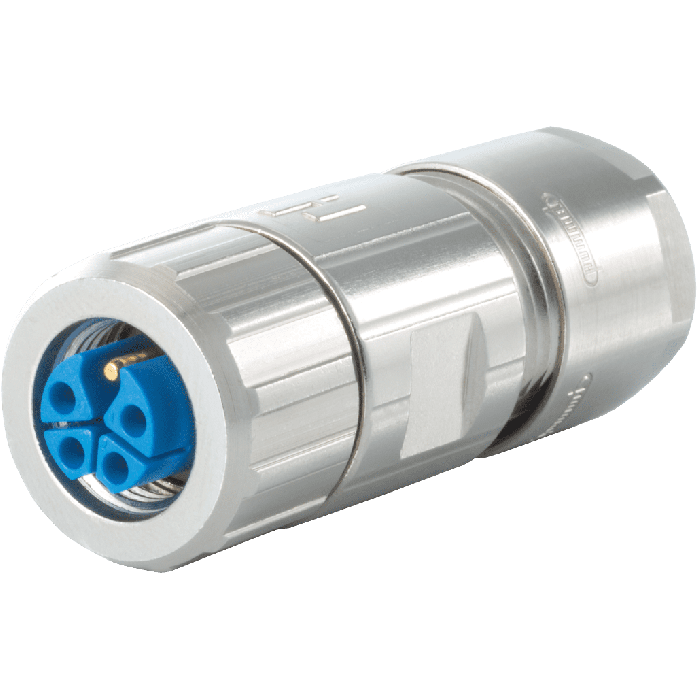

M12 Power cable connector housing
M12 Power cable connector housing from Hummel. Also known as A712-7K10500000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | A712-7K10500000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.05469 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. Applies to coding K/L: max. operating temperature at max. operating time: +100°C at 20000h / +125°C at 600h |
| Customs tariff number | 85366990 |
| EAN code | 4033878505311 |
| ETIM 7 | EC003556 |
| Body size | M12 |
| Housing type | Cable |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | K;L |
| Internal thread - plug in side | M12 x 1 |
| Knurled nut diameter - plug in side (mm) | 19.7 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | shielded |
| Material seals / O-rings | HNBR;NBR |
| Cable diameter (mm) | 8 - 11 |
| Wrench size SW1 / SW2 (mm) | 18/18 |
| Suitable contact inserts | A712-7K03941102, A712-7L03941102 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
