Hummel

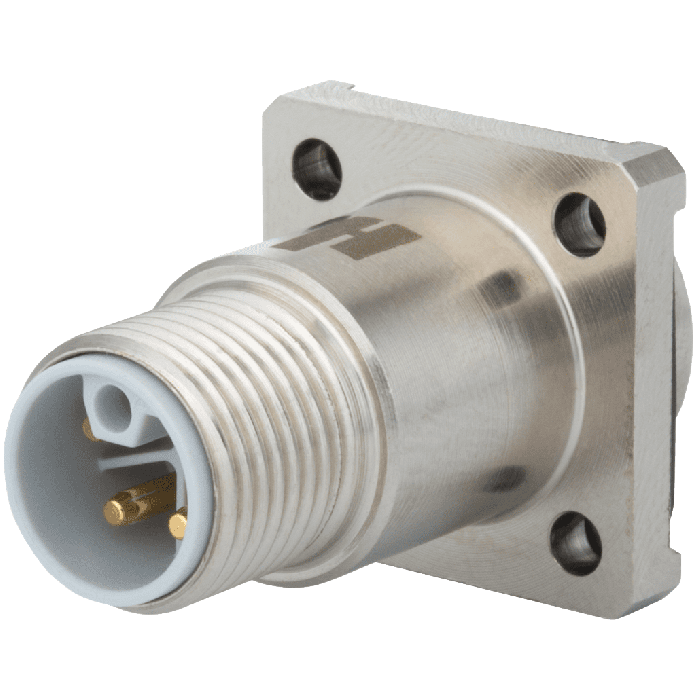

M12 Power panel connector housing
M12 Power panel connector housing from Hummel. Also known as A712-7K40000000. The body material is Copper-Zinc alloy. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | A712-7K40000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.01447 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. Applies to coding K/L: max. operating temperature at max. operating time: +100°C at 20000h / +125°C at 600h |
| Customs tariff number | 85366990 |
| EAN code | 4033878505359 |
| ETIM 7 | EC003556 |
| Body size | M12 |
| Housing type | Panel |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding | K;L |
| Installation type | Flange |
| External thread - plug in side | M12 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Material seals / O-rings | NBR |
| Flange (mm) | 20 x 20 |
| Hole distance (mm) | 14.0000 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Suitable contact inserts | A712-7K03941101, A712-7L03941101 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M12 |
| Housing type | Panel |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
