A712-7S42200000
A712-7S42200000
Hummel

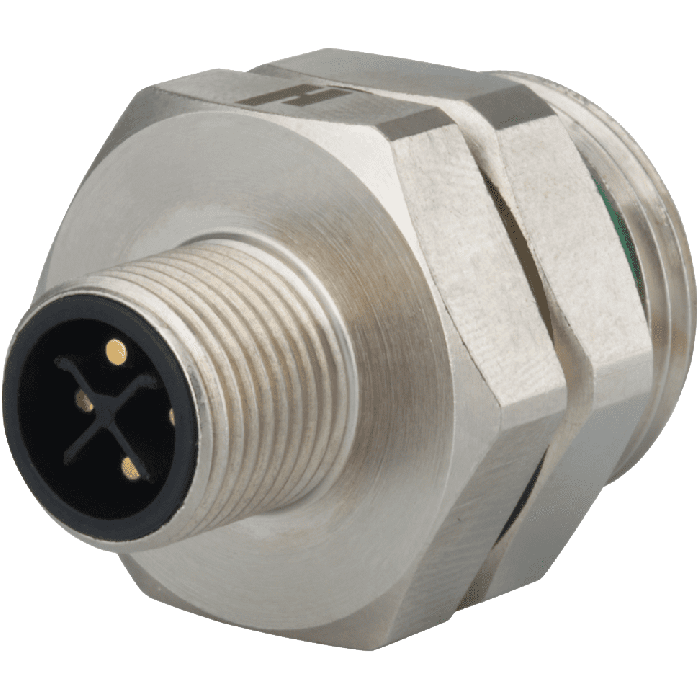

M12 Power panel connector housing
M12 Power panel connector housing from Hummel. Also known as A712-7S42200000. The body material is Copper-Zinc alloy. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | A712-7S42200000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.03633 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878505540 |
| ETIM 7 | EC003556 |
| Body size | M12 |
| Housing type | Panel |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding | S;T |
| Installation type | Front wall. Single hole mounting |
| External thread (AG) | M20 x 1.5 |
| External thread - plug in side | M12 x 1 |
| Internal thread - plug in side | M12 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Material seals / O-rings | FKM (FPM) |
| Wrench size SW1 / SW2 (mm) | 23/23 |
| Suitable contact inserts | A712-7S05931105, A712-7T05904105 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M12 |
| Housing type | Panel |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
