ADM-8558

ADM-8558

ADM-8558

Marki Microwave

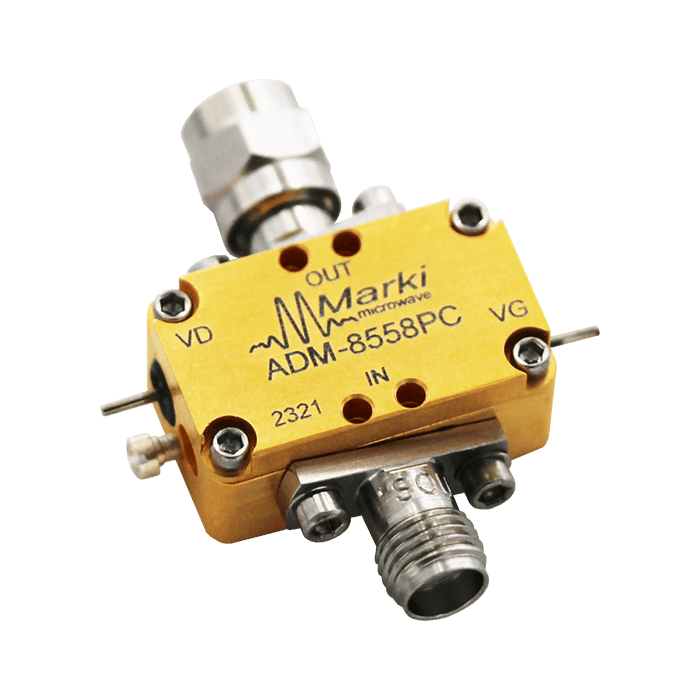

DC - 20 GHz Distributed Amplifier

The ADM-8558 is a wideband distributed low noise amplifier capable of providing 16 dB gain and +23 dBm OIP3 from DC to 20 GHz and a low 1.8 dB typical noise figure from 7 to 15 GHz. The ADM-8558 is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-8558 is available in bare die and connectorized module forms. The amplifier has excellent return losses and gain flatness.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Minimum Frequency DC
Noise Figure [dBm] 1.8
Small Signal Gain [dB] 16
Output P1dB [dBm] +14
Output IP3 [dBm] 23
Voltage [V/V] +6
Current [mA] 50
Amplifier Type Low Noise
Package Bare Die and Module
More Information
Attribute Value
Data Sheet Click here to view
