ADM-8624PSM
ADM-8624PSM
Marki Microwave
0.2 - 20 GHz High Dynamic Range Gain Block

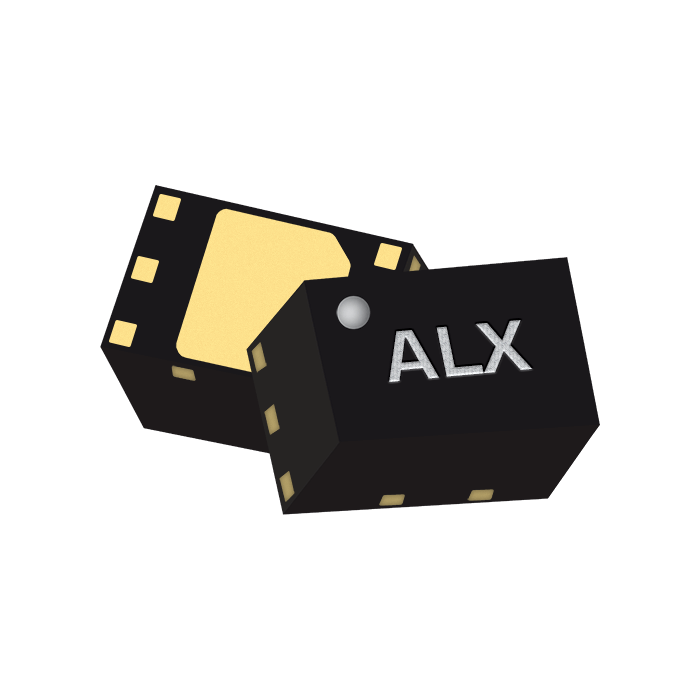

The ADM-8624PSM is a high-linearity, low noise amplifier capable of providing 11.5 dB gain and +25 dBm OIP3 across a broad 0.2-20 GHz bandwidth. The amplifier's low power consumption, high dynamic range and size make it an ideal choice for RF front end, low SWaP applications. Compared to the sister ADM-8475PSM, the ADM-8624PSM has higher gain and lower noise. The ADM-8475PSM has flatter gain and lower return loss. The ADM-8624PSM is available in a compact 1.3 x 2 mm DFN package.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.2 |
| Noise Figure [dBm] | 2.8 |
| Small Signal Gain [dB] | 11.5 |
| Output P1dB [dBm] | +13.5 |
| Output IP3 [dBm] | 25 |
| Voltage [V/V] | +5 |
| Current [mA] | 40 |
| Amplifier Type | Gain Block |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
