AIMB-584

AIMB-584

Advantech

4th Gen Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1150 MicroATX with Q87/C226, CRT/DVI/eDP/LVDS/DP, 6 COM, Dual LAN, SATAIII

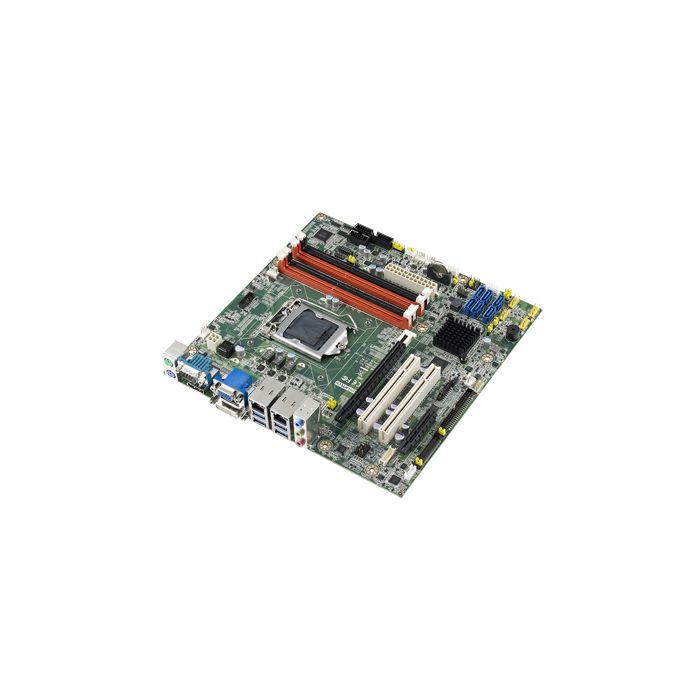

main product photo
With only 244 x 244 mm size, MicroATX (uATX) or mATX industrial motherboard is suited for space/cost sensitive applications where less than 4 slots are required. Equipped with LVDS interface, longevity and revision control, MicroATX is suitable for medical and instrumentation applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Supports Intel ® Xeon ® / Core™ i7/i5/i3 processor with Q87/C226 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
  • Supports CRT, DVI, LVDS, DP, eDP (optional) display
  • Supports Intel AMT 9.0 and Intel vPro competent
  • Supports PCIE Gen3, USB 3.0, Software RAID 0,1,5,10, TPM 1.2 (Optional)
  • Support 6 x SATAIII, 2 SATAII and dual GbE LAN
  • Supports WISE PaaS/RMM and Embedded Software APIs
  • Support SUSI, WISE-DeviceOn and Edge AI Suite.
Product Type MicroATX Motherboards
More Information
Attribute Value
Data Sheet Click here to view
