AMS-5705
AMS-5705
ETS-Lindgren
5G CATR Antenna Measurement System
Next Level 5G Testing with the AMS 5705 CATR System

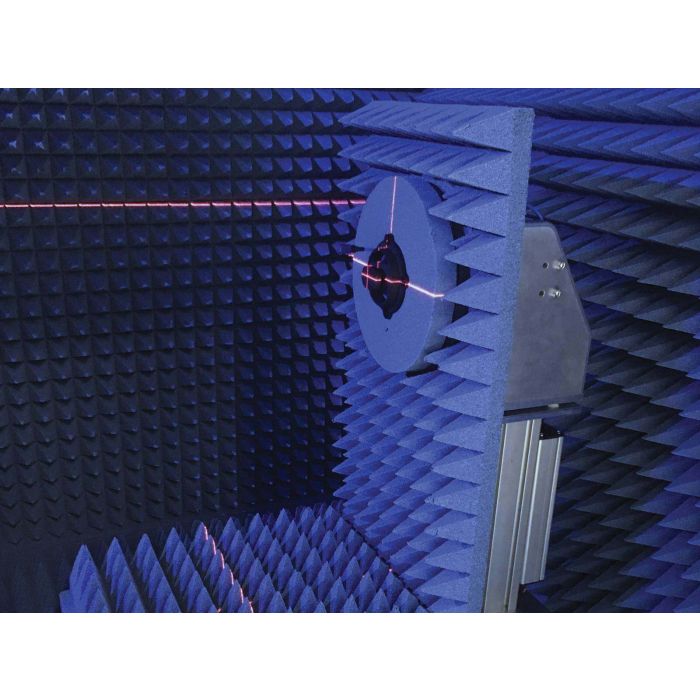

AMS-5705 CATR 5G Antenna Measurement System is an indirect far-field compact antenna test range (CATR) system with a 30 cm QZ. The system meets 3GPP and CTIA quality-of-quiet-zone and phase-validation requirements for 5GNR bands n257 through n262.
AMS-5705 is also Qualcomm approved for FR2 beam characterization and verification. Its 30 cm QZ is perfect for 5G FR2-enabled smartphone and tablet testing with CTIA approved phantoms. This model offers 10 kg (22 lb) positioning capacity for the DUT and necessary FR2 phantoms, and provides USB for device communication and power on the multi-axis positioning system (MAPS).
AMS-5705 is a reach-in semiportable chamber design on casters that can be relocated as needed through common double-door width office space. This system also supports passive antenna-pattern testing for any antenna array up to 30 cm diameter in the listed frequency range.
Key Features:
- Indirect Far Field CATR
- Mobile Platform on Wheels
- 0.03 Accuracy
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 2.7 m x 1.5 m x 2.0 m (8.8 ft x 5.0 ft x 6.5 ft) |
| Frequency Range | 5GNR FR2, 24 GHz to 43.5 GHz |
| Configuration |
|
| Shielding effectiveness | 80 dB @ 40 GHz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
