ARK-1221L

ARK-1221L

Advantech

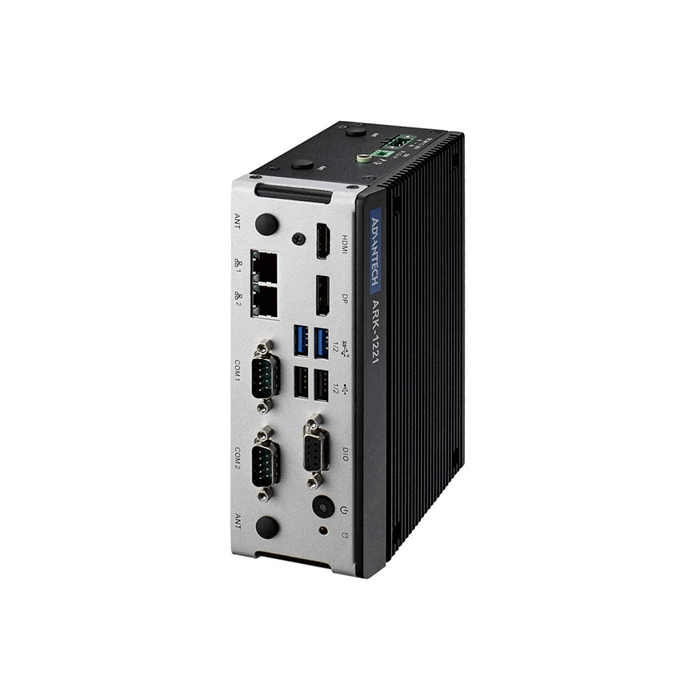

Intel Atom x6413E QC SoC with GbE, COM, USB, HDMI/DP and DIO ports DIN-Rail Fanless Box PC

main product photo

The Advantech ARK-1000 series features ultra-small and low power consumption designs that offer sufficient storage and PCIe expansion for space-limited applications.

The ARK-1221L features the Intel® Atom® x6413E Quad Core CPU and supports up to 32 GB DDR4-2666 memory for computing-intensive IoT operations. ARK-1221L leverages WISE-DeviceOn to provide a 5G-ready IoT gateway for remotely managing edge devices, reducing downtime and maintenance costs, and increasing processing efficiency and productivity.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Intel Atom® x6413E Quad Core SoC turbo burst up to 3.0 GHz
  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 2 x RS-232/422/485
  • Dual independent displays with one 4K HDMI and one 4K DP
  • 2 x USB 3.2 and 2 x USB 2.0, 1 x internal USB2.0 for security dongle
  • 1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key, 1 x full-size mPCIe
  • mSATA and 1 x 2.5" SATA storage device
  • 12V ~ 28V wide range power input, -40 ~ 60 °C extended operating temperature
  • No RED Certification
Series
Product Type
More Information
Attribute Value
Data Sheet Click here to view
