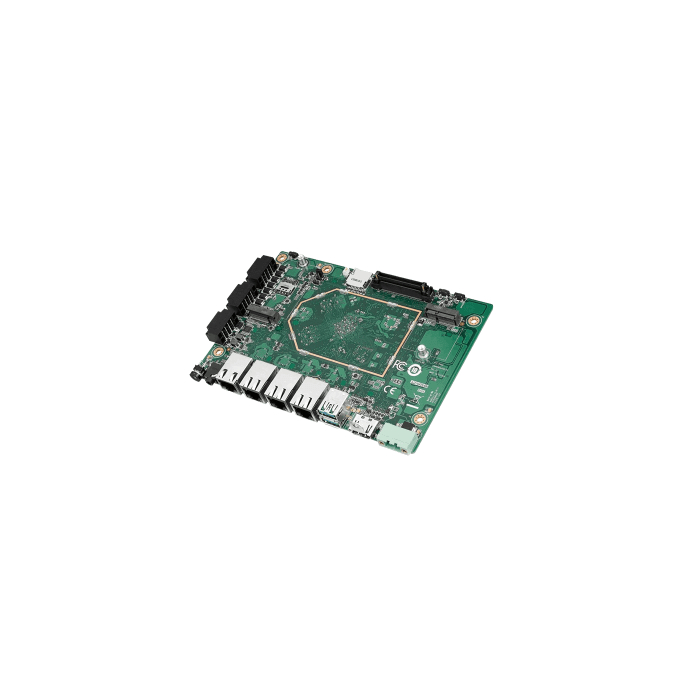

ASR-A501

Rockchip RK3588 Cortex®-A76 and A55 4" SBC

Key Features

• Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
• Built-in NPU with processing performance of up to 6 TOPS
• Onboard 8/16GB LPDDR4 memory and 64/32GB eMMC
• Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
• Supports 2 x PCIe 3.0 1-lane, 2 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, 1 x USB by 120pins B2B Connector
• Provides I/O ports:
  • 1 x 2.5GbE, 3 x GbE, 2 x USB 3.0, 2 x CAN FD, 2 x RS-232/485
  • 2 x RS-485, 1 x HDMI 2.0, 1 x Line Out/Mic In
• 12-24V DC In, Contact 8KV, Air 15KV ESD Protection
• Provides a M.2 E Key with PCIe 2.1, USB 2.0 signal and a M.2 B Key with PCIe 2.1/SATA, USB 2.0 signal
• Supports Linux Debian 12 and Android 14
