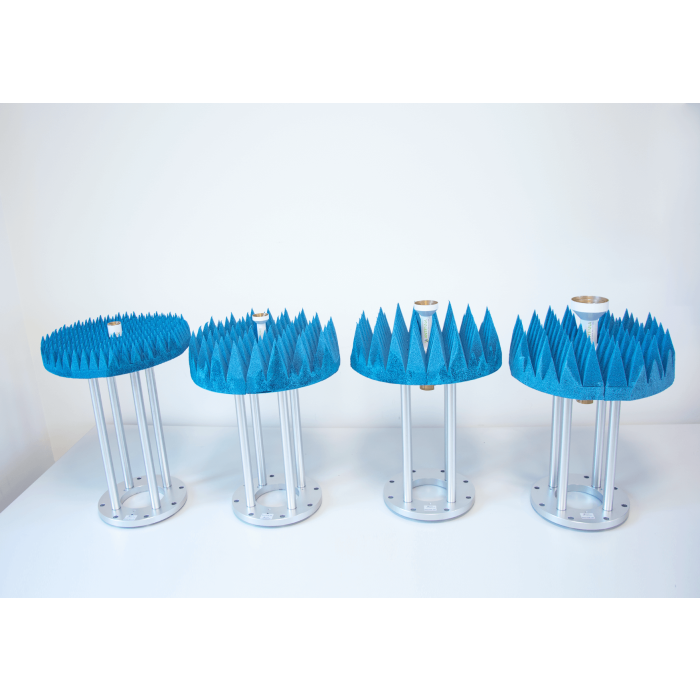

ASY-CWG (S/D) Series Corrugated Feeds Near-Field Probes
ASY-CWG-(S\D) Series Corrugated Feeds Near-Field Probes
Corrugated feeds from ASYSOL are based on open-ended circular waveguide, with several frontal corrugations. As a result of optimised design and high-precision manufacturing, the feeds possess rotationally symmetric radiation patterns with low back radiation and very low cross-polarisation.
In standard single-polarisation configuration, the feeds are provided with integrated waveguide-to-coax adapters with SMA or K connectors. In dual-polarisation configuration, the feeds are provided with Ortho-Mode Transducers with very low cross-coupling. In both single-pol and dual-pol configurations, the feeds cover a standard waveguide band. Custom frequency bands are available upon request.
The feeds satisfy the requirement on the spherical modal content (μ=±1) important for spherical Near-Field measurements and thus the feeds are also used as spherical Near-Field probes. Their advantages over the usual open-ended waveguides are: better matching to the feed line, better suppression of the wall reflections, less dependent on the support structure interference, thus allowing more accurate Near-Field antenna measurements.
| Model Number | Frequency band [GHz] | Gain [dBi] | VSWR | Cx-pol [dB] |
|---|---|---|---|---|
| ASY-CWG-S-005 | 0.55 – 0.89 | 10.5 | < 1.6:1 | < -40 |
| ASY-CWG-S-007 | 0.75 – 1.1 | 11.0 | < 1.6:1 | < -40 |
| ASY-CWG-S-011 | 1.1 – 1.7 | 11.5 | < 1.6:1 | < -40 |
| ASY-CWG-S-017 | 1.7 – 2.6 | 11.5 | < 1.6:1 | < -40 |
| ASY-CWG-S-026 | 2.6 – 3.95 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-039 | 3.95 – 5.85 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-058 | 5.85 – 8.2 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-082 | 8.2 – 12.4 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-100 | 10.0 – 15.0 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-124 | 12.4 – 18.0 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-180 | 18.0 – 26.5 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-265 | 26.5 – 40.0 | 13.5 | < 1.5:1 | < -45 |
| ASY-CWG-S-400 | 40.0 – 60.0 | 13.5 | < 1.5:1 | < -40 |
| ASY-CWG-S-500 | 50.0 – 75.0 | 13.5 | < 1.5:1 | < -40 |
| ASY-CWG-S-750 | 75.0 – 110.0 | 13.5 | < 1.5:1 | < -40 |
