AT30A-040080J-2-AF
AT30A-040080J-2-AF
Aaren Technology

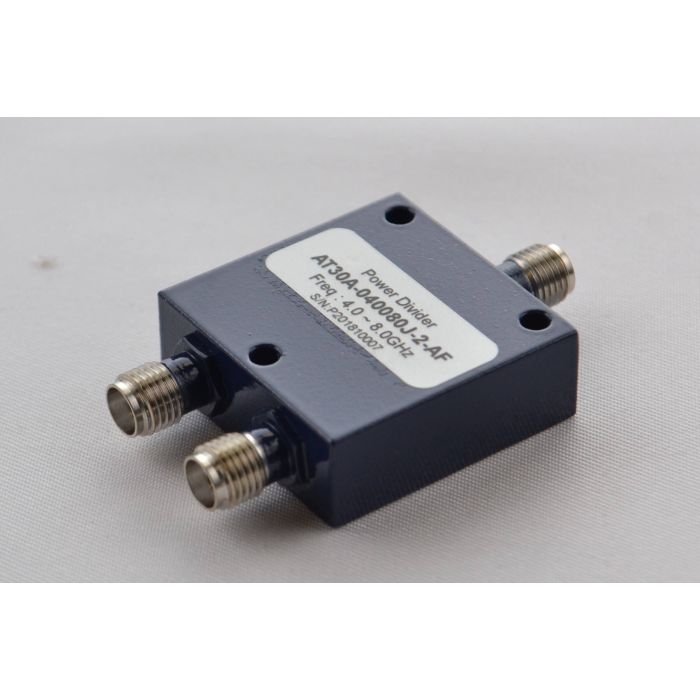

Power Divider 2 Way 4.0 to 8.0GHz SMA Female 30W
Aaren Technology Power Dividers
2 Way 4.0 to 8.0GHz SMA Female 30Watt. They are designed with excellent characteristics over the full frequency range.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Weight | 0.23 |
| Frequency | 4.0 ~ 8.0GHz |
| VSWR Max | ≤1.60:1 |
| Material Finishing | Black Paint |
| Insertion Loss | ≤0.6dB |
| Isolation | ≥18dB |
| Amplitude Balance | ± 0.2dB |
| Phase Balance | ± 3° |
| Operating Temperature | -55 ~ +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
