AT30A-G727-50-3-NF
AT30A-G727-50-3-NF
Aaren Technology

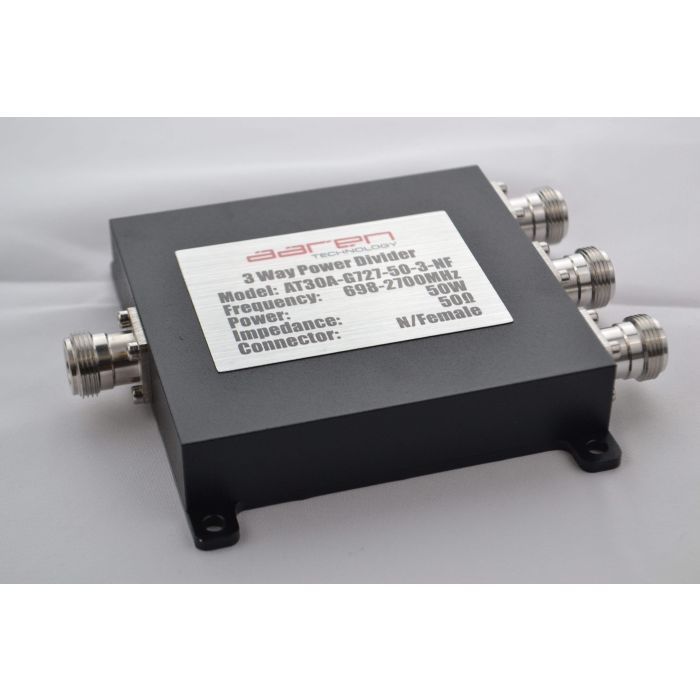

Power Divider - 3 Way N Type Female 50W, 698 to 2700MHz
Aaren Technology Power Dividers
3 Way 698 to 2700MHz N Female 50Watt. They are designed with excellent characteristics over the full frequency range.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Weight | 0.023 |
| Impedance | 50Ω |
| Frequency | 698 ~ 2700MHz |
| VSWR Max | ≤1.25 |
| Material Finishing | Gold/Gray/Frosted Matte Black |
| Insertion Loss | ≤0.6dB |
| Split Loss | 4.8dB |
| Isolation | ≥20dB |
| Intermodulation | -130 with 2 carriers @ 20W |
| Operating Temperature | -25 ~ +85°C |
| Applications | Indoor/Outdoor, IP65 |
| Power Input | 50W |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
