AT36A-3737
AT36A-3737
Aaren Technology

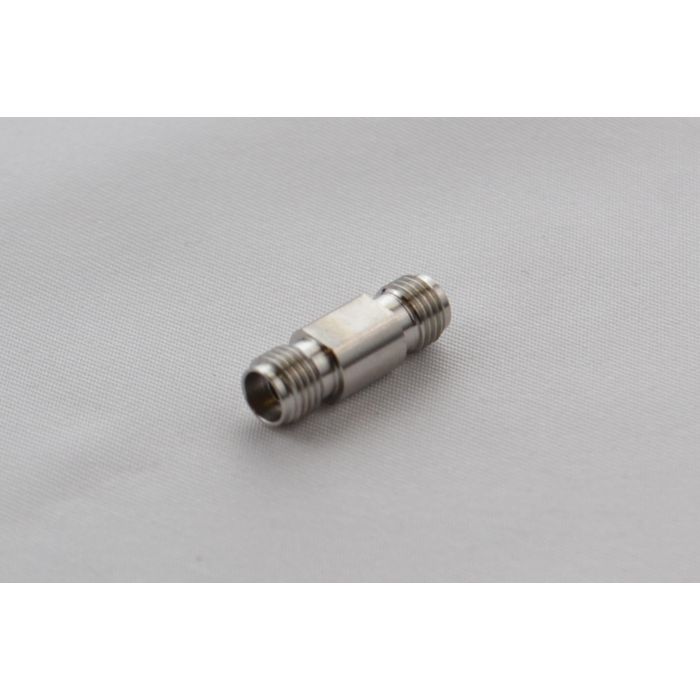

RF Precision Adapter 2.92mm Female to 2.92mm Female DC-40GHz, 50Ω
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
In stock
| Attribute | Value |
|---|---|
| Weight | 0.005 |
| Impedance | 50Ω |
| Frequency | DC-40GHz |
| VSWR Max | 1.20:1 |
| Durability | 500 Cycles |
| Temperature Range | -55˚C ~ +165˚C |
| Material Finishing |
Housing: Stainless Steel SU303 (Polished/Passivated) |
| Interface | 2.92mm Per MIL-STD-348A |
| Connector Family | SMA Connectors DC to 27GHz |
| Diameter | 0.87mm/0.034" |
| Dielectric Withstanding Voltage | 1500V |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
