AT37P-31461-E-CP

AT37P-31461-E-CP

Aaren Technology

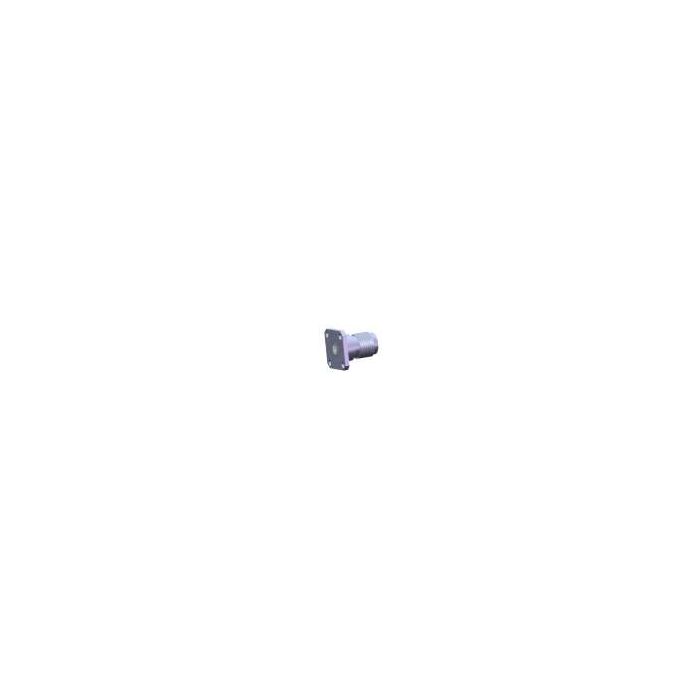

Replaceable Pin, TNCA F, Pin: 0.51mm/0.020"

Aaren Technology TNCA connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 18GHz.

TNCA connectors are mechanically compatible with TNC connectors.

Please note: There is a minimum order quantity of 10 for this item. Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].

In stock
£26.45
More Information
Attribute Value
Connector Family TNCA Connectors (DC-18GHz)
Weight 0.005
Impedance 50Ω
Frequency DC-18GHz
VSWR Max 1.15:1
Durability 500 Cycles
Temperature Range -55˚C ~ +165˚C
Material Finishing

Housing: Stainless Steel SU303 (Polished/Passivated)
Centre Contact: Beryllium Copper, Gold Plated (MIL-G-45204)
Insulators: PEI & PTFE

Interface N-Type Per MIL-STD-348A
More Information
Attribute Value
Data Sheet Click here to view
