AT37P-33861-A-2P
AT37P-33861-A-2P
Aaren Technology

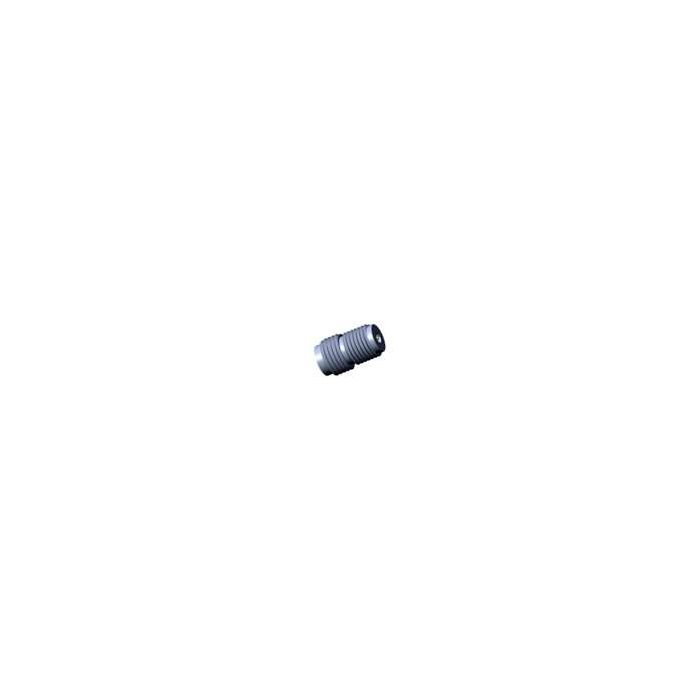

Replaceable Pin, 1.85mm F, Pin: 0.23mm/0.009"
Aaren Technology 1.85mm Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 65GHz. 1.85mm connectors are mechanically compatible with 2.4mm connectors.
Price breaks available for higher quantities - ask our team for details
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | 1.85mm Replaceable Connectors |
| Temperature Range | -55˚C ~ +165˚C |
| Interface | 1.85mm Per IEEE IEC-61169 |
| Frequency | DC-65GHz |
| Durability | 500 Cycles |
| VSWR Max | 1.25:1 |
| Connector Family |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
