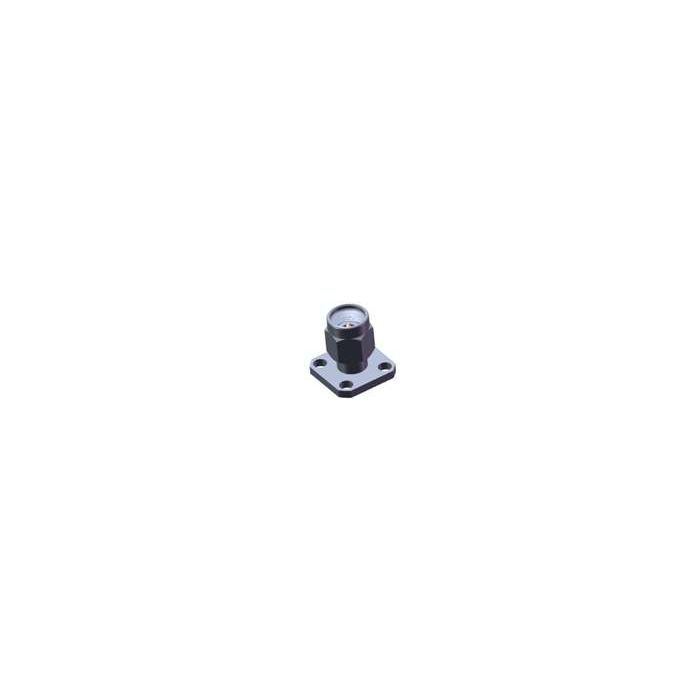

AT37P-36461-C-BP
AT37P-36461-C-BP
Aaren Technology
Replaceable Pin, 2.92mm M, Pin: 0.38mm/0.015"
Aaren Technology 2.92mm Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 40GHz. 2.92mm connectors are mechanically compatible with 3.5mm, SMA connectors.
Price breaks available for higher quantities - ask our team for details
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | 2.92mm Replaceable Connectors |
| Temperature Range | -55˚C ~ +165˚C |
| Interface | 2.92mm Per MIL-STD-348A |
| Frequency | DC-40GHz |
| Durability | 500 Cycles |
| VSWR Max | 1.15:1 |
| Connector Family |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
