AT37P-41461-C-AP
AT37P-41461-C-AP
Aaren Technology

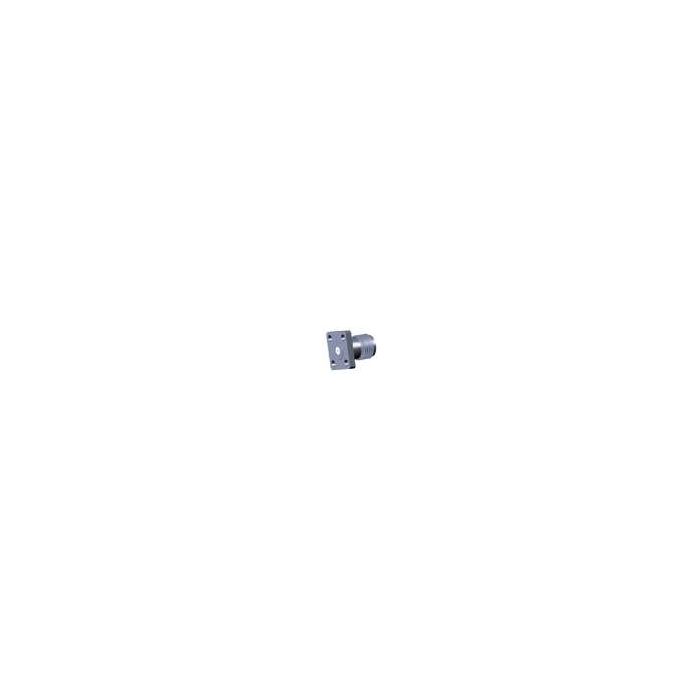

RF Precision Connector, SMA Female, DC-27GHz, PIN: 0.38mm/0.015", 50Ω
Aaren Technology SMA Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 27GHz.
No external filling epoxy hole on the housing to prevent signal leakage.
Price breaks available for higher quantities - ask our team for details
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | SMA Replaceable Connectors |
| Temperature Range | -55˚C ~ +165˚C |
| Interface | SMA Per MIL-STD-348A |
| Frequency | DC-27GHz |
| Durability | 500 Cycles |
| VSWR Max | 1.15:1 |
| Connector Family | SMA Connectors (DC-27GHz) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
