AT37P-41461-E-BP
AT37P-41461-E-BP
Aaren Technology

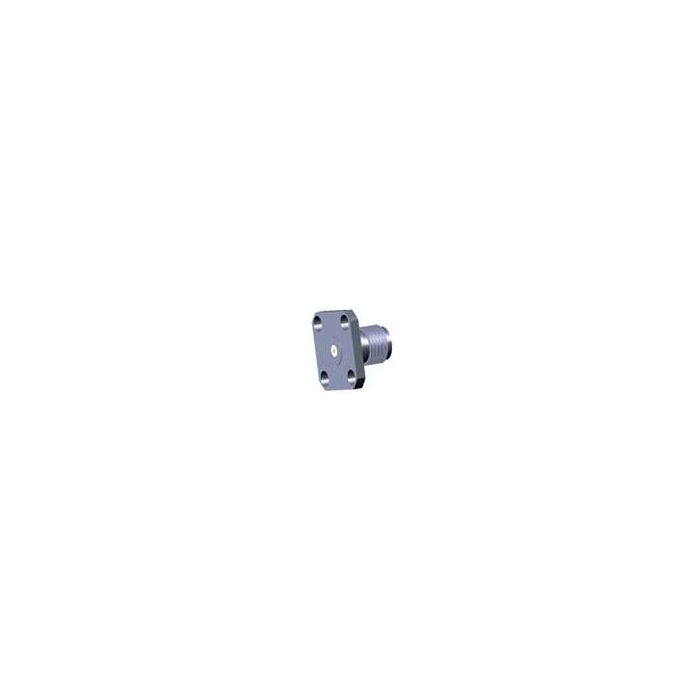

Replaceable Pin, SMA F, Pin: 0.51mm/0.020"
Aaren Technology SMA Connectors
50Ω precision connectors designed with excellent characteristics over the full frequency range, up to 27GHz.
No external filling epoxy hole on the housing to prevent signal leakage.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Minimum Order Quantity: 25 | Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Connector Family | SMA Connectors (DC-27GHz) |
| Weight | 0.005 |
| Impedance | 50Ω |
| Frequency | DC-27GHz |
| VSWR Max | 1.15:1 |
| Durability | 500 Cycles |
| Temperature Range | -55˚C ~ +165˚C |
| Material Finishing |
Housing: Stainless Steel SU303 (Polished/Passivated) |
| Interface | SMA Per MIL-STD-348A |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
