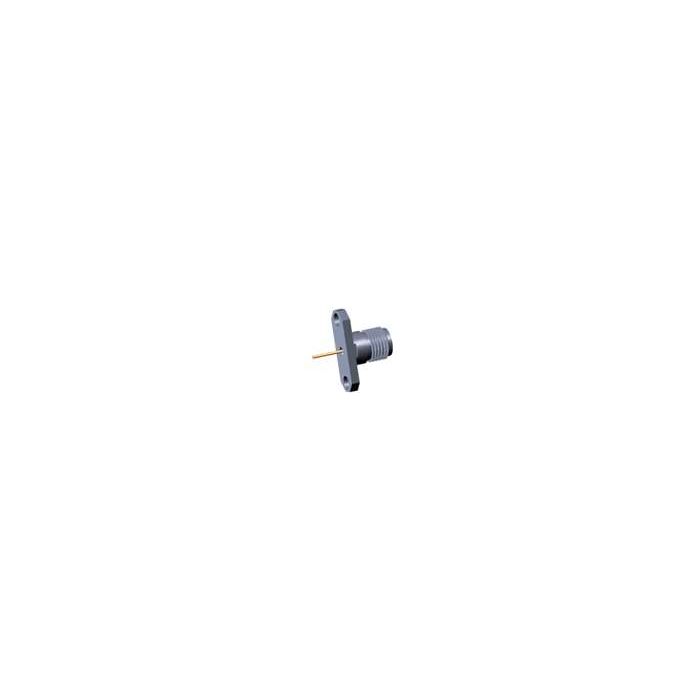

AT37PBP-37E25F04-269

AT37PBP-37E25F04-269

Aaren Technology

Blunt Post Contact, 2.92mm F, 2 Hole Flange

Aaren Technology 2.92mm Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 40GHz. 2.92mm connectors are mechanically compatible with 3.5mm, SMA connectors.

Price breaks available for higher quantities - ask our team for details

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Type 2.92mm Receptacle (Blunt Post Contact) Connectors
Temperature Range -55˚C ~ +165˚C
Interface 2.92mm Per MIL-STD-348A
Frequency DC-40GHz
Durability 500 Cycles
VSWR Max 1.15:1
Connector Family
More Information
Attribute Value
Data Sheet Click here to view
