AT37PET-35A0605F02
AT37PET-35A0605F02
Aaren Technology

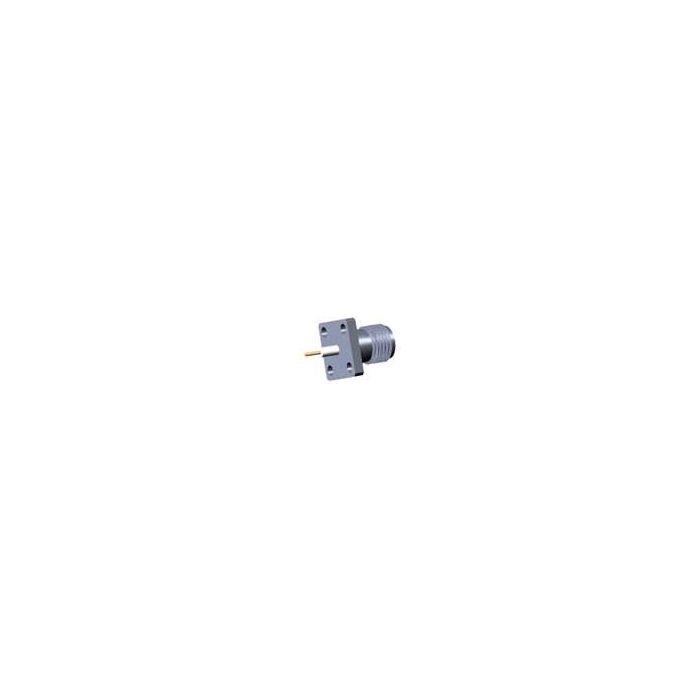

Exposed Teflon, 2.4mm F, 4 Hole Flange
Aaren Technology 2.4mm Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 50GHz. 2.4mm connectors are mechanically compatible with 1.85mm connectors.
Price breaks available for higher quantities - ask our team for details
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | 2.4mm Receptacle (Exposed Teflon) Connectors |
| Temperature Range | -55˚C ~ +165˚C |
| Interface | 2.4mm Per MIL-STD-348A |
| Frequency | DC-50GHz |
| Durability | 500 Cycles |
| VSWR Max | 1.15:1 |
| Connector Family |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
