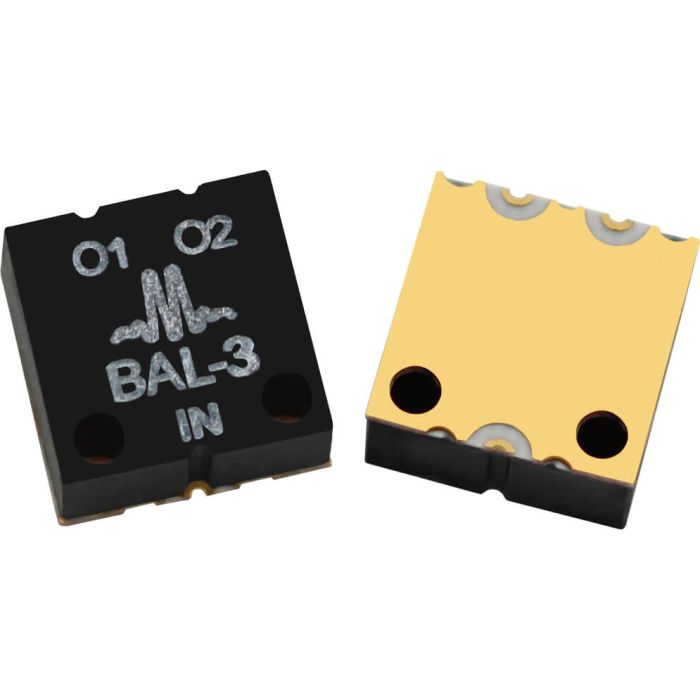

BAL-0003SMG
BAL-0003SMG
Marki Microwave
Surface Mount Broadband Balun (500 kHz - 3 GHz)
An RF/microwave balun (or transformer) is a device that takes an input signal at a given input impedance and outputs the same signal, and an inverted version of that signal, at some output impedance.
Marki Microwave's BAL series of 1:2 transmission line transformer baluns offer superior amplitude balance, phase balance, and common mode rejection to competing commercially available surface mount transformers. The BALH series are 1:1, higher power, and lower loss. These surface-mount baluns are ROHS compliant.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Phase Balance Degrees | 3.0000 |
| Maximum Frequency | 3 GHz |
| Isolation (dB) | 9 |
| Minimum Frequency | 500 kHz |
| Product Type | Surface Mounts & Bare Die |
| Insertion Loss (dB) | 3.8 |
| Amplitude Balance (dB) | 0.3 |
| Common Mode Rejection (dB) | 35.0000 |
| RoHS | Y |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
