BNA100

BNA100

Bird

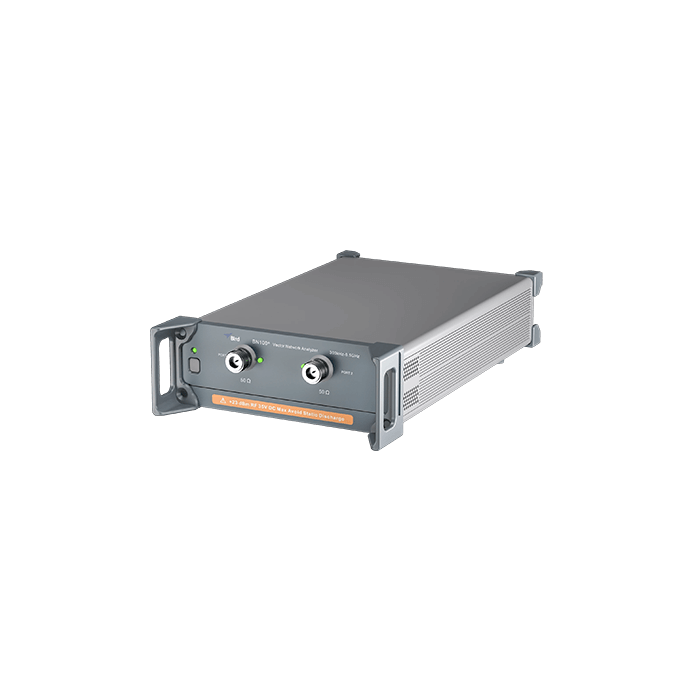

USB Vector Network Analyser - Accuracy Meets Agility for VNA Testing

Accuracy Meets Agility for VNA Testing

The BNA100 Series Vector Network Analyser offers exceptional performance in a compact package, balancing the demands of productivity, budget, and space. Merging affordability with high-end VNA functionalities, the BN100 Series is the perfect tool for those seeking cost-effective solutions without compromising on performance and accuracy.


BN100 Key Performance Specifications:

  • 300 kHz to 6.5/8.5 GHz
  • > 120 dB dynamic range
  • Up to +10 dBm output power
  • 0.005 dB RMS trace noise
  • 68 us/point fast measurement speed
  • Time Domain analysis with Gating
  • User interface software included

Applications:

  • Educational Lab
  • Manufacturing Test
  • Passive/Active Component Evaluation
  • RF & Microwave Product Design
  • Filter Design and Testing
  • Fault Location
  • Antenna Tuning
  • Quality Control and Incoming Inspection
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Item Name USB Vector Network Analyser
Frequency Range 300 kHz to 6.5 / 8.5 GHz
Output Power -50 dBm to +10 dBm
Trace Noise 5 mdB rms (IFBW = 3 kHz)
Measurement Points 2 to 20001
Measurement Time Per Point 42 μs
Effective Directivity 38 dB
Dynamic Range 120 dB typical (IFBW = 10 Hz)
More Information
Attribute Value
Data Sheet Click here to view
