BT2080-100-P

BT2080-100-P

Focus Microwaves

Bias Tee (2 - 8 GHz)

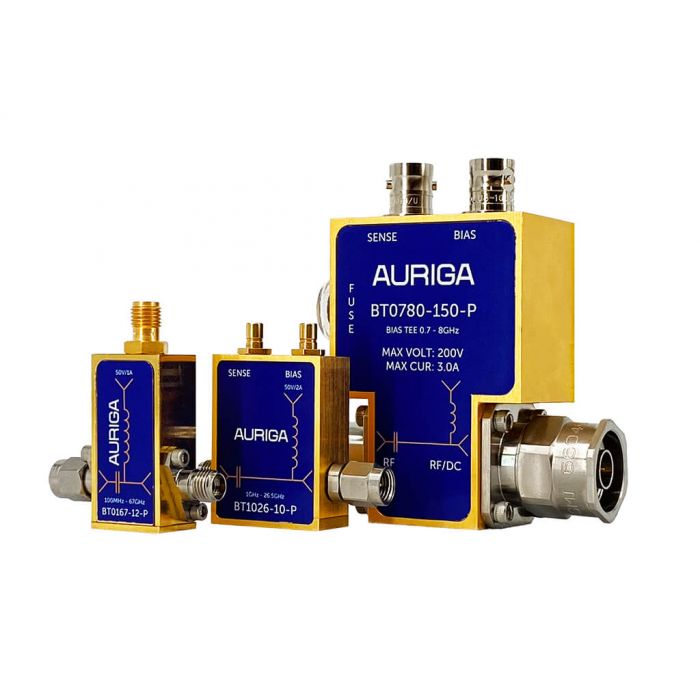

Auriga Bias Tees balance impressive RF performance with heavy-duty power handling across multiple frequency bands ranging from 100 MHz to 40 GHz. They are designed for rigorous usage without sacrificing RF performance. Only the highest-quality materials are used to minimise signal loss and enable efficient heat removal.

The highest-power bias tees include a fast-acting fuse to protect DUTs against current spikes. A DC sense port is provided for accurately measuring the incident DC voltage. Bias tees requiring external heat sinking include pre-tapped holes for easy mounting

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Minimum Frequency 2 GHz
Maximum Frequency 8 GHz
Insertion Loss (dB) 1.7
Maximum Current 10 A
Maximum Power 100 W
Connectors Type N
Product Type Bias Tee
More Information
Attribute Value
Data Sheet Click here to view
