BTL-0012SMG
BTL-0012SMG
Marki Microwave

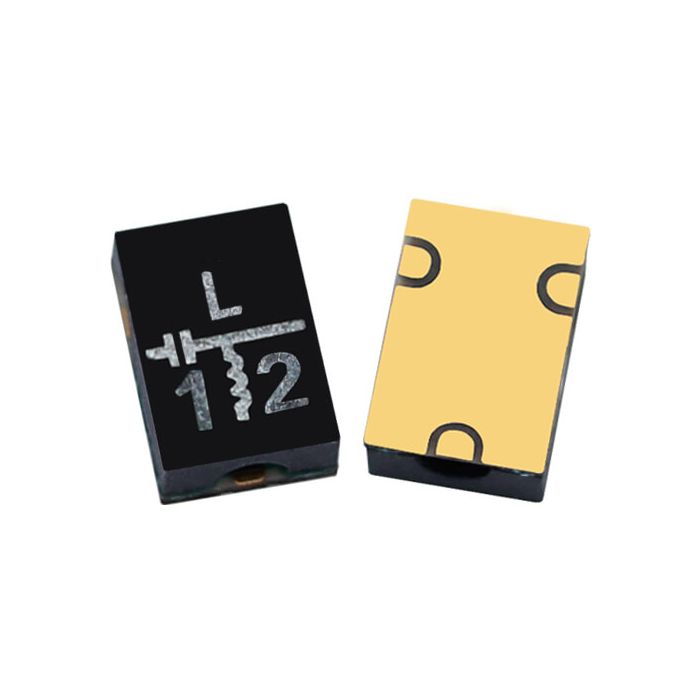

Miniature Surface-Mount Bias Tee (500 kHz - 12 GHz)
Marki Microwave surface mount bias tees are built using a proprietary wire-wound coil technology and precise assembly processes enabling ultra-broadband resonance-free operation in a compact .150” x .220” package.
BTL models offer the lowest frequency extension, 500 kHz, with the option to extend down to 5 kHz by using an external coil. Optional bypass capacitors can be added near the DC input port to filter noise on the DC line.
The BT models include the bypass capacitor on the DC line and operate down to 20 MHz.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| RoHS | Y |
| Maximum Frequency | 12 GHz |
| Isolation (dB) | 35 |
| Minimum Frequency | 500 kHz |
| Voltage | 30 V |
| Current | 0.5 A |
| Product Type | |
| Applications |
|
| Insertion Loss (dB) | 0.5 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
