AT30A-007040G-2-AF
AT30A-007040G-2-AF
Aaren Technology

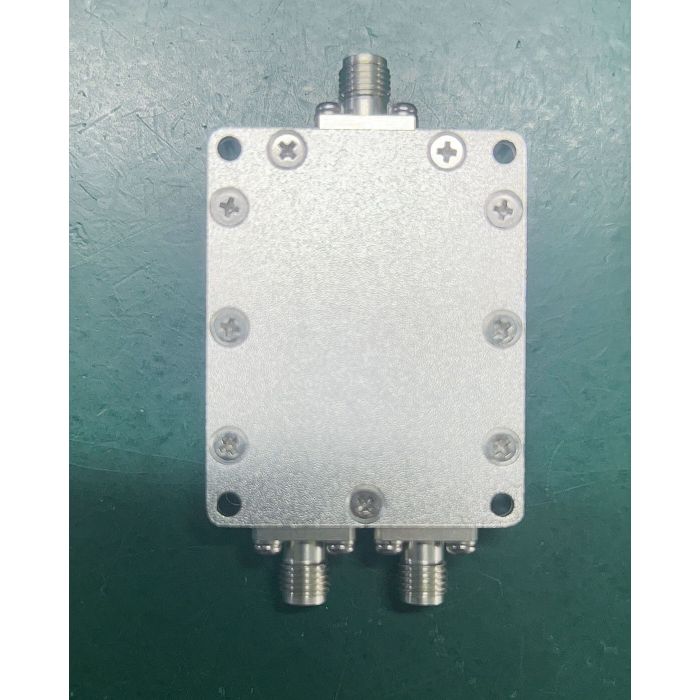

Power Divider 2 Way
Aaren Technology Power Dividers
2 Way 0.75 to 4.0GHz SMA Female 30Watt. They are designed with excellent characteristics over the full frequency range.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Frequency | 750-40000MHz |
| Material Finishing | Black Paint |
| Insertion Loss | ≤1.2 (Excluding theoretical loss 3.0 dB) |
| Isolation | ≥20 dB |
| Amplitude Balance | ±0.2 dB |
| Reverse Power | 2W |
| Phase Balance | ±3° |
| Operating Temperature | -55 ~ +85 |
| Power Handling | 30W |
| Connectors | SMA Female all ports |
| Input VSWR | ≤1.25 |
| Output VSWR | ≤1.20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
