AT36A-3434
AT36A-3434
Aaren Technology

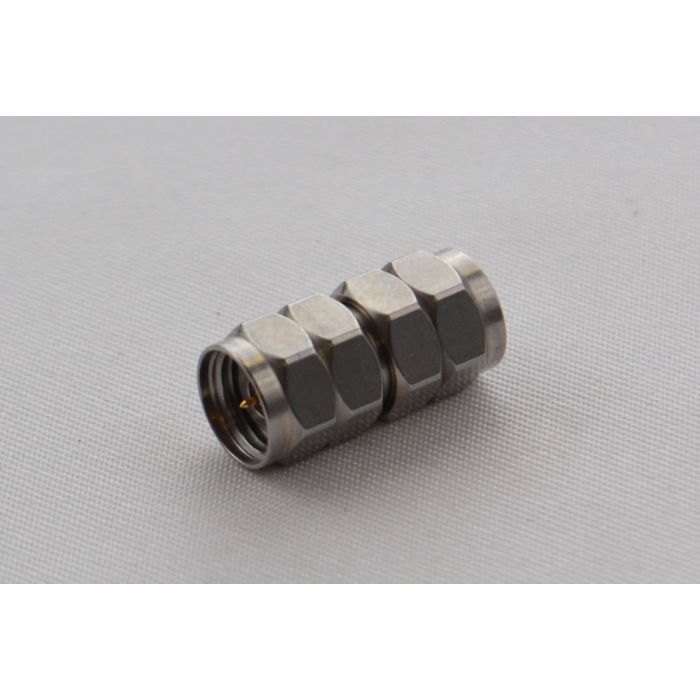

RF Precision Adapter 2.4mm Male to 2.4mm Male DC-50GHz, 50Ω
Aaren Technology Precision Adaptors
50Ω2.4mm Male to 2.4mm Male DC to 50GHz VSWR 1.15:1
They are designed with excellent characteristics over the full frequency range up to 50GHz.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Weight | 0.005 |
| Impedance | 50Ω |
| Frequency | DC-50GHz |
| VSWR Max | 1.15:1 |
| Durability | 500 Cycles |
| Temperature Range | -55˚C ~ +165˚C |
| Material Finishing |
Housing: Stainless Steel SU303 (Polished/Passivated) |
| Interface | 2.4mm Per IEEE STD 287-2007 |
| Connector Family | 2.99mm Connectors DC to 40GHz |
| Diameter | 0.51mm/0.020" |
| Dielectric Withstanding Voltage | 750V |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
