AT37P-41561-B-GP
AT37P-41561-B-GP
Aaren Technology

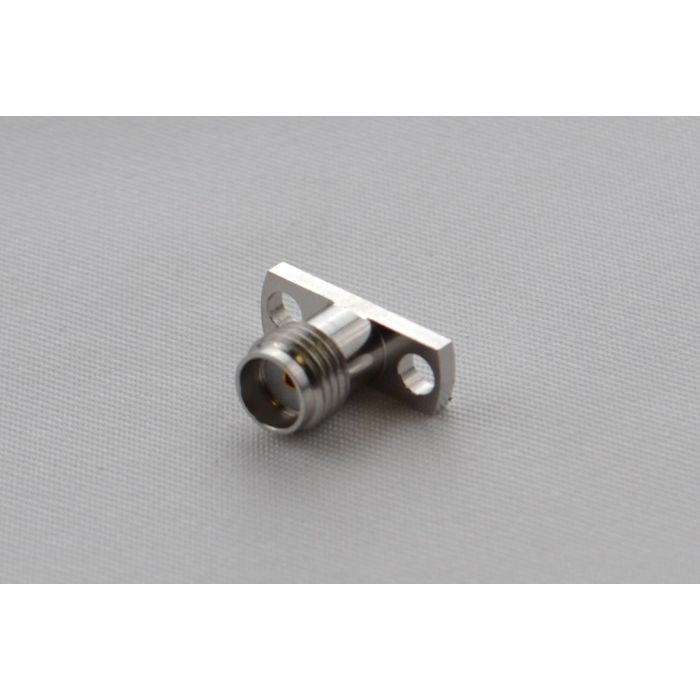

Replaceable Pin, SMA F, Pin: 0.30mm/0.012"
Aaren Technology SMA Connectors
50Ω precision connectors, designed with excellent characteristics over the full frequency range - up to 27GHz.
No external filling epoxy hole on the housing to prevent signal leakage.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Minimum Order Quantity: 25 | Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Connector Family | SMA Connectors (DC-27GHz) |
| Weight | 0.005 |
| Impedance | 50Ω |
| Frequency | DC-27GHz |
| VSWR Max | 1.15:1 |
| Durability | 500 Cycles |
| Temperature Range | -55˚C ~ +165˚C |
| Material Finishing |
Housing: Stainless Steel SU303 (Polished/Passivated) |
| Interface | SMA Per MIL-STD-348A |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
