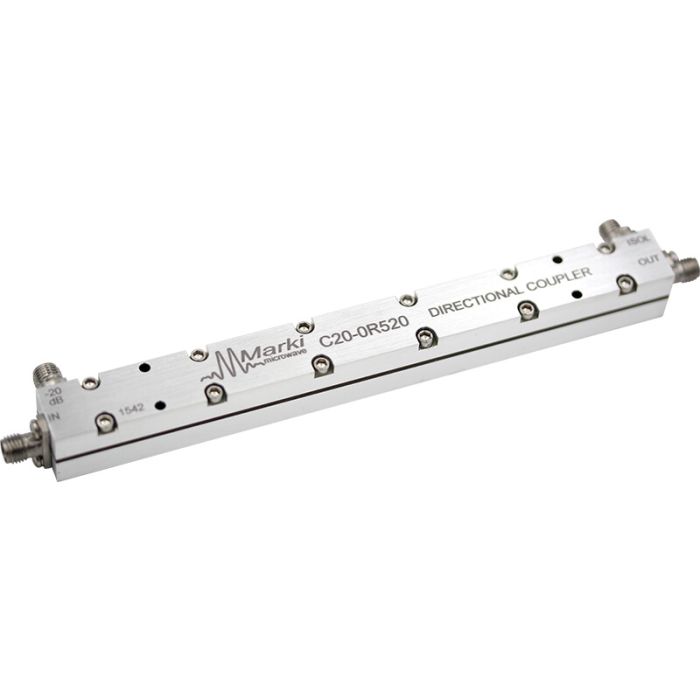

C20-0R520
C20-0R520
Marki Microwave
Stripline Directional Coupler (500 MHz - 20 GHz)
The C20-0R520 is a broadband 0.5-20 GHz, 20 dB directional coupler. The multisection tri-plate stripline design exhibits excellent coupling flatness and VSWR at all ports. Custom designs are also available; contact APC for details.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Directivity (dB) | 22 dB |
| Amplitude Flatness | ±0.75 dB |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | |
| Product Type | |
| VSWR | 1.2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
