CA0010
CA0010
Narda Safety Test Solutions

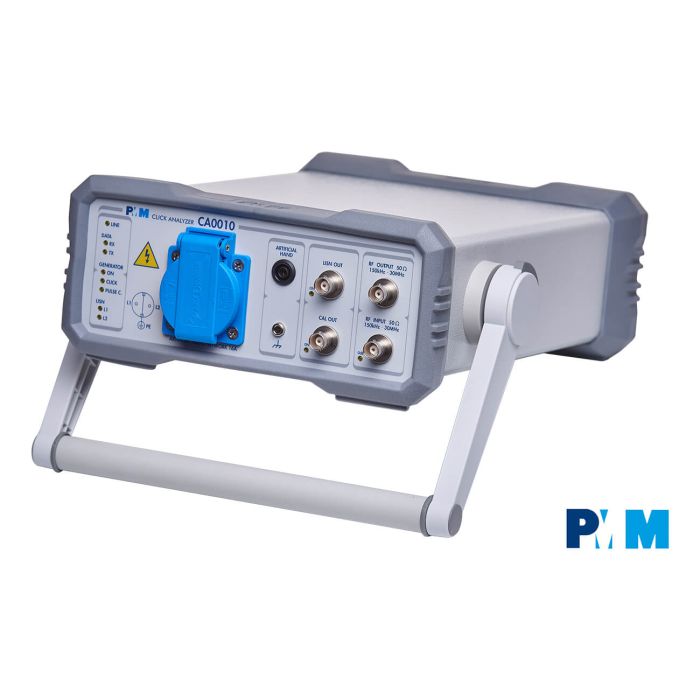

Four-Channel Click Analyser With Integrated LISN And Full CISPR Calibrator
The Click Analyser CA0010, a collaboration between Narda and PMM, exemplifies precision and reliability in click measurement.
Engineered to meet rigorous standards like CISPR 14-1 ed. 7, IEC/EN55014-1, and CISPR 16-1-1.
When paired with Narda FFT EMI Receivers, it ensures compliance with current and future standards, enhancing EMC testing capabilities.
The CA0010 integrates advanced features within its architecture, including a 16A LISN for precise measurements.
Its flexibility extends to compatibility with external PMM LISNs for three-phase loads up to 500A.
Software packages, PCA and PCG, enable detailed analysis and streamline CISPR test sequences.
Reliable and user-friendly, the CA0010 requires no IT components and simplifies click measurements for all operators.
In conclusion, the CA0010 is essential for accurate and reliable click measurements in EMC laboratories.
Key Features
- Cutting-edge technology for maximum accuracy.
- Revolutionary architecture for increased efficiency.
- Flexibility and scalability to meet various needs.
- Comprehensive software for in-depth analysis.
- Reliability and ease of use.
- Conducted and click emission measurements.
- Compliance testing to CISPR standards.
- Analysis of disturbances generated by components such as relays and switches.
- EMC research and development.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 235 x 105 x 335 mm |
| Weight | 4.1 kg |
| Minimum Frequency | 150 kHz |
| Frequency Range | 150 kHz; 500 kHz; 1,4 MHz; 30 MHz |
| RF Input | Zin 50 Ω, Internal switch from LISN or BNC fem. |
| Specification |
VSWR: < 1,2 Attenuator: 0 dB to 35 dB (5 dB steps) one per channel, independent setting Preamplifier: 15 dB one per channel, independent setting RF Output: Zout 50 Ω, BNC fem. VSWR: < 1,2 |
| Max Input Level | 140 dBμV (2 W) |
| Preselector |
(Permanent built-in) (four BP filters) |
| I/O Interface | USB 2.0, RS-232 |
| Operating Temperature | -5°C to 45°C |
| Power Supply | 12 Volt DC, 0,7 A (AC universal adapter) |
| RF Generator |
CW Frequency range: 150 kHz to 30 MHz Frequency resolution: 100 Hz Accuracy: 10 ppM Amplitude range: 20 to 95 dBuV Amplitude resolution: 0.1 dB Click (OOK) Minimum ON time: 100 us Minimum separation: 100 us Time resolution: 10 us CISPR PULSES Spectral density range: 80 to 101 dBuV/MHz Amplitude resolution: 0.1 dB Flatness: 1.8 dB from 150 kHz to 30 MHz PRF: 1 to 500 Hz PRF resolution: 1 Hz |
| RF Output | Internal switch or BNC fem. |
| Autocalibration | Embedded generator for autocalibration and system test |
| CISPR Conformity | CISPR 14-1, CISPR 16-1-1, CISPR 16-1-2 |
| Application Software |
PCA PMM Click Analysis software. Four channels IF and QP time diagram with click detection and analysis Measurement log and report PCG PMM Click Generation software. CISPR 16-1-1 standard, annex F and user’s definable test generation |
| Specs |
Built-in LISN (compliant to CISPR 16-1-2) Frequency range: 150 kHz to 30 MHz Continuous rated output current: 16 A Max permissible operating voltage: 250 Vac – 350 Vdc EUT supply frequency range: DC to 60 Hz CISPR equivalent circuit: 50 Ω // 50 μH EUT power connector: Schuko 2P+E Line plug: IEC 60320 C20 Artificial hand: 4 mm socket RF Output: Internal switch or BNC fem. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
