Hummel

Cable gland made of glass fibre reinforced polyamide with multi cable sealing insert for hazardous areas

Cable gland made of glass fibre reinforced polyamide with multi cable sealing insert for hazardous areas Protection class - IP 68 – 10 bar. Version - short. Seal - Elastomer
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 1581200151
Colour black
Weight (kg) 0.01295
Further information Further seal inserts on request, Installation note: The cable diameter may be less than the drill diameter by 20%, but not more than 1 mm
Customs tariff number 39269097
EAN code 4033878000083
ETIM 7 EC000441
Packaging Unit 50

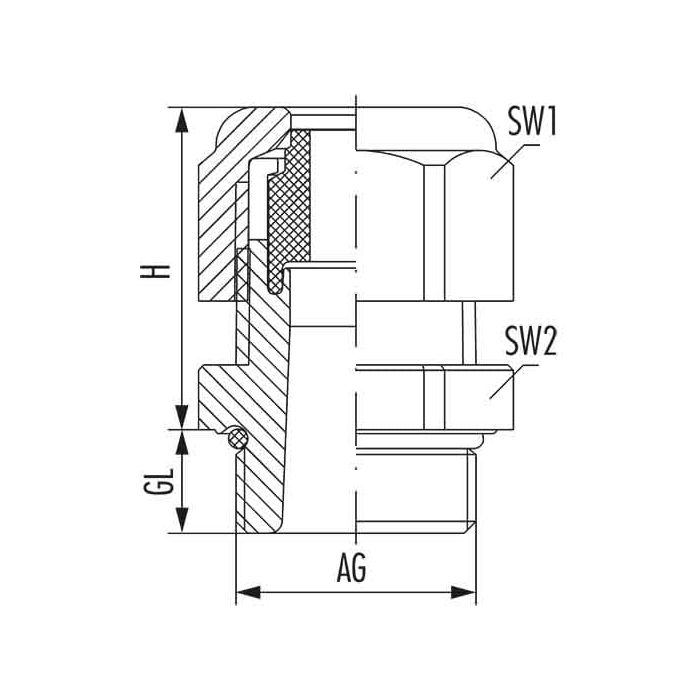

Height (mm) 27.0000
Certificates INMETRO, ATEX, IECEx, cCSAus, EAC, CE
Version short
External thread (AG) M20 x 1,5
Material seals / O-rings NBR
Wrench size SW1 / SW2 (mm) 24/24
Protection class IP 68 – 10 bar
Material Polyamide, fiber reinforced
Seal Elastomer
Thread length (mm) 9.0000
RAL 9005.0000
Variant Metric
Number of holes x d 6 x 3
Tightening torque [Nm] 4.5
Wrench size 1 (SW1) [mm] 24.0000
Wrench size (SW) [mm] 24.0000
Ex-protection level Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb
Norms RoHS
Minimum cable diameter (mm) 0 - 10
Maximum cable diameter (mm) 0 - 10
Temperature Range -20°C to +85°C
